DCH481B

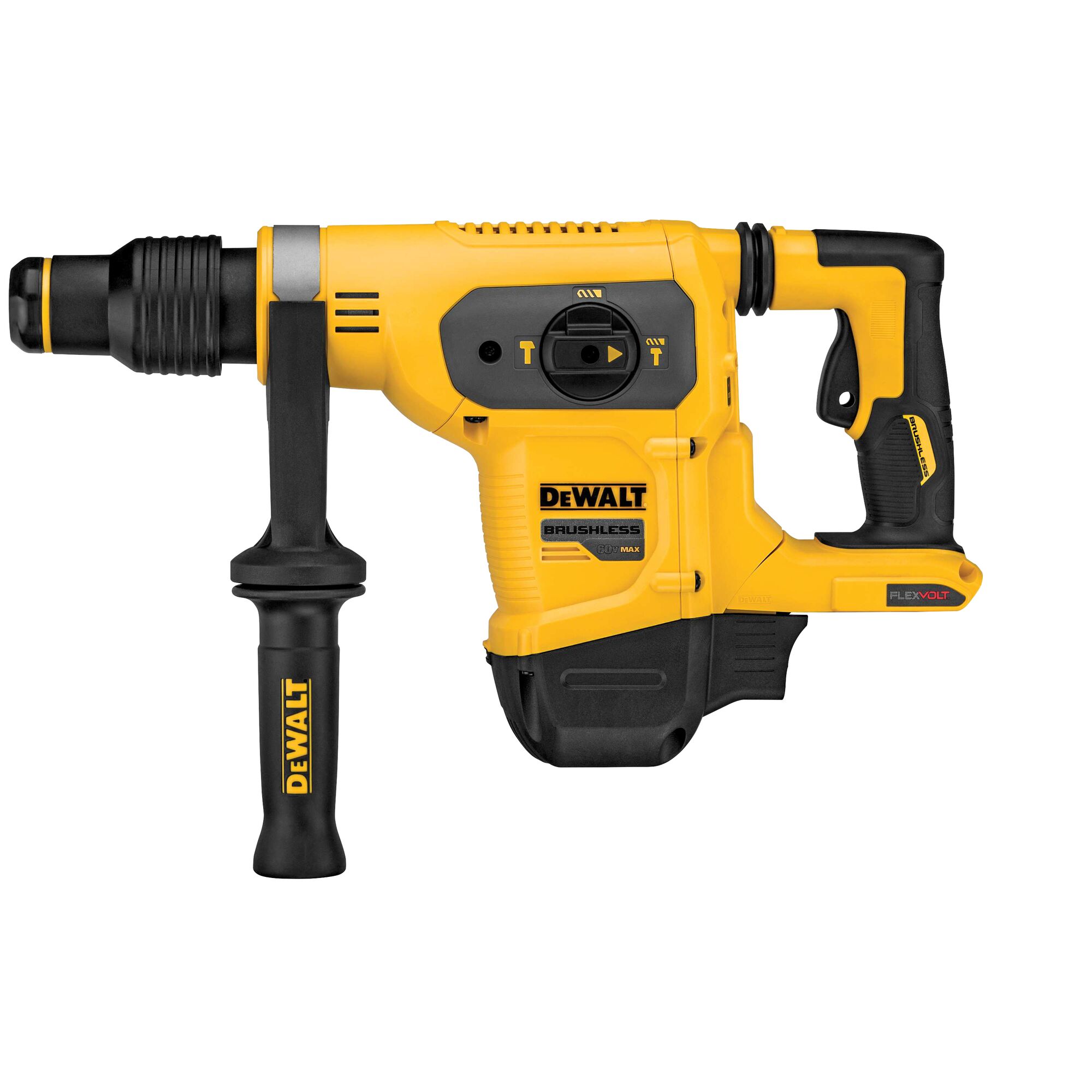

60V MAX* 1-9/16 in. Brushless Cordless SDS MAX Combination Rotary Hammer (Tool Only)

DCH481B

60V MAX* 1-9/16 in. Brushless Cordless SDS MAX Combination Rotary Hammer (Tool Only)

6.1 Joules of impact energy for fast drilling and chipping, even in the hardest concrete
Anti-Rotation E-CLUTCH System shuts down the tool in bind up situations
Constant speed electronics allows the tool to maintain speed under load

See More Details

DCH481B

60V MAX* 1-9/16 in. Brushless Cordless SDS MAX Combination Rotary Hammer (Tool Only)

6.1 Joules of impact energy for fast drilling and chipping, even in the hardest concrete
Anti-Rotation E-CLUTCH System shuts down the tool in bind up situations
Constant speed electronics allows the tool to maintain speed under load

See More Details

Product Details

Downloads

Product Overview

Get the POWER OF CORDED. FREEDOM OF CORDLESS™. The 60V MAX* 1-9/16 in. Brushless SDS MAX Combination Hammer is powered by a brushless motor and a durable German-engineered mechanism that delivers 6.1 Joules of impact energy. Designed for fast drilling and chipping in tough materials, this tool is engineered with constant-speed electronics that allow the tool to maintain speed under load. The SHOCKS ACTIVE VIBRATION CONTROL® technology and E-CLUTCH® system help promote safe usage compared to rotary hammers without these features. As a Tag Ready™ product, this tool can be seamlessly integrated into the DEWALT® TOOL CONNECT™ system.

Applications

Drilling for #4 - #8 rebar and 5/8 in. - 1 in. threaded rod
Chipping in any mid to upper wall and ceiling application.
Dry coring

Specifications

Battery Capacity [Ah]	9
Battery Type	Lithium Ion
Battery Voltage [V]	60
Chuck Size [in]	1-9/16
Chuck Type	SDS Max
Color	Yellow, Black
Has Vibration Control?	Yes
Is Brushless?	Yes
Number Of Pieces	1
Power Source	Battery
Product Height [in]	4.53
Product Length [in]	19.33
Product Weight [oz]	224
Product Width [in]	13.27
Used for Chipping?	Yes

Additional Features

Shocks Active Vibration Control System reduces vibration felt by the user at the handles, compared to rotary hammers without this feature
The light weight design makes it ideally suited for horizontal drilling for #3 - #6 rebar dowel applications and dry coring up to 3 in
Brushless motor and German-engineered mechanism
Tag Ready™ so users and companies can attach the DEWALT Tag and track its location virtually anywhere via the DEWALT Tool Connect™ app
Ideally suited for chipping in any lower wall and floor, ground rod driving, and bushing

Includes

(1) DCH481 60V MAX* Combination rotary hammer
(1) 360˚ Side handle

Warranty Information

3 Year Limited Warranty, 1 Year Free Service, 90 Days Satisfaction Guaranteed

We’re confident of the quality of our products, and we’ll repair, without charge, any defects due to faulty materials or workmanship within the specified warranty.
