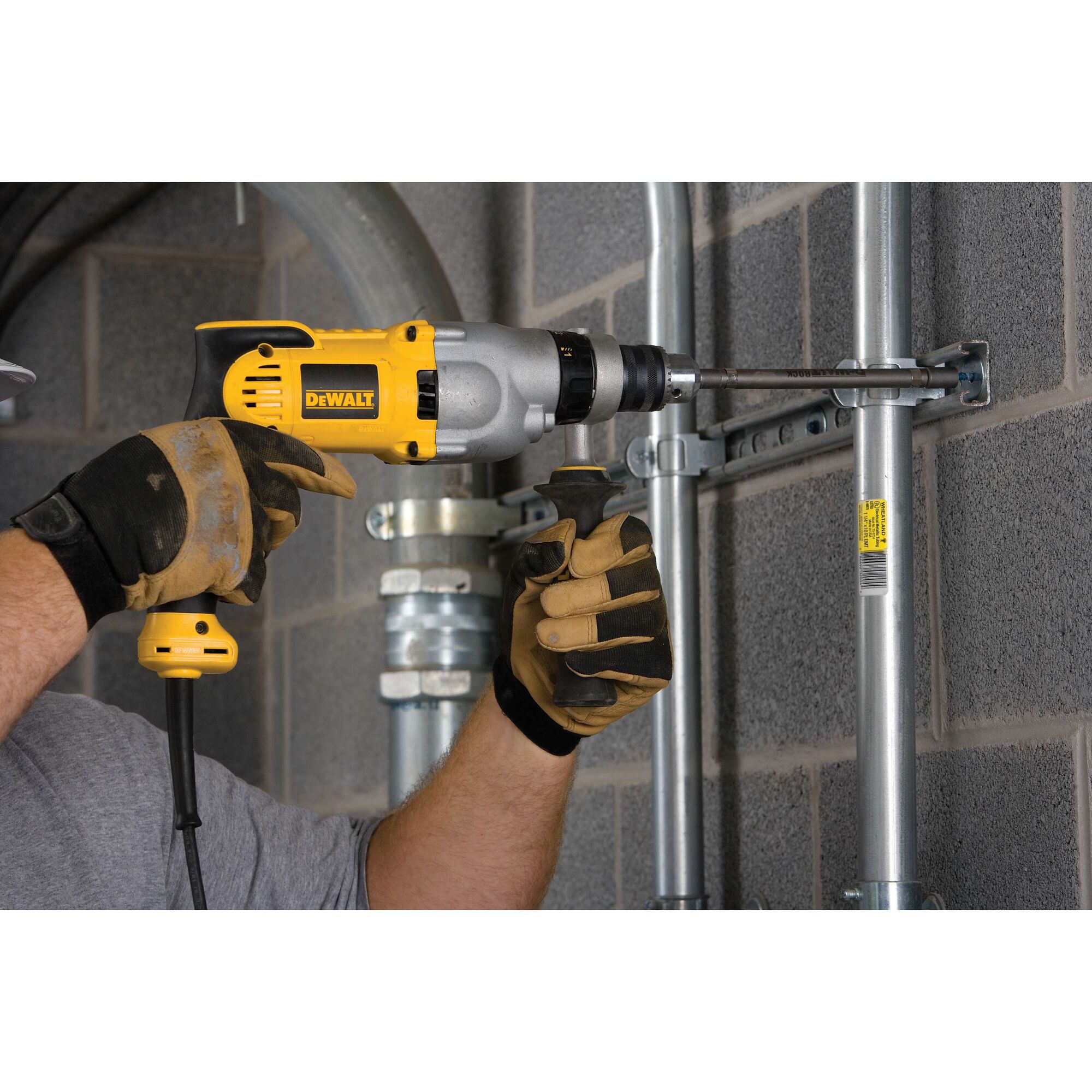

V S R pistol grip hammerdrill being used to drill into metal.

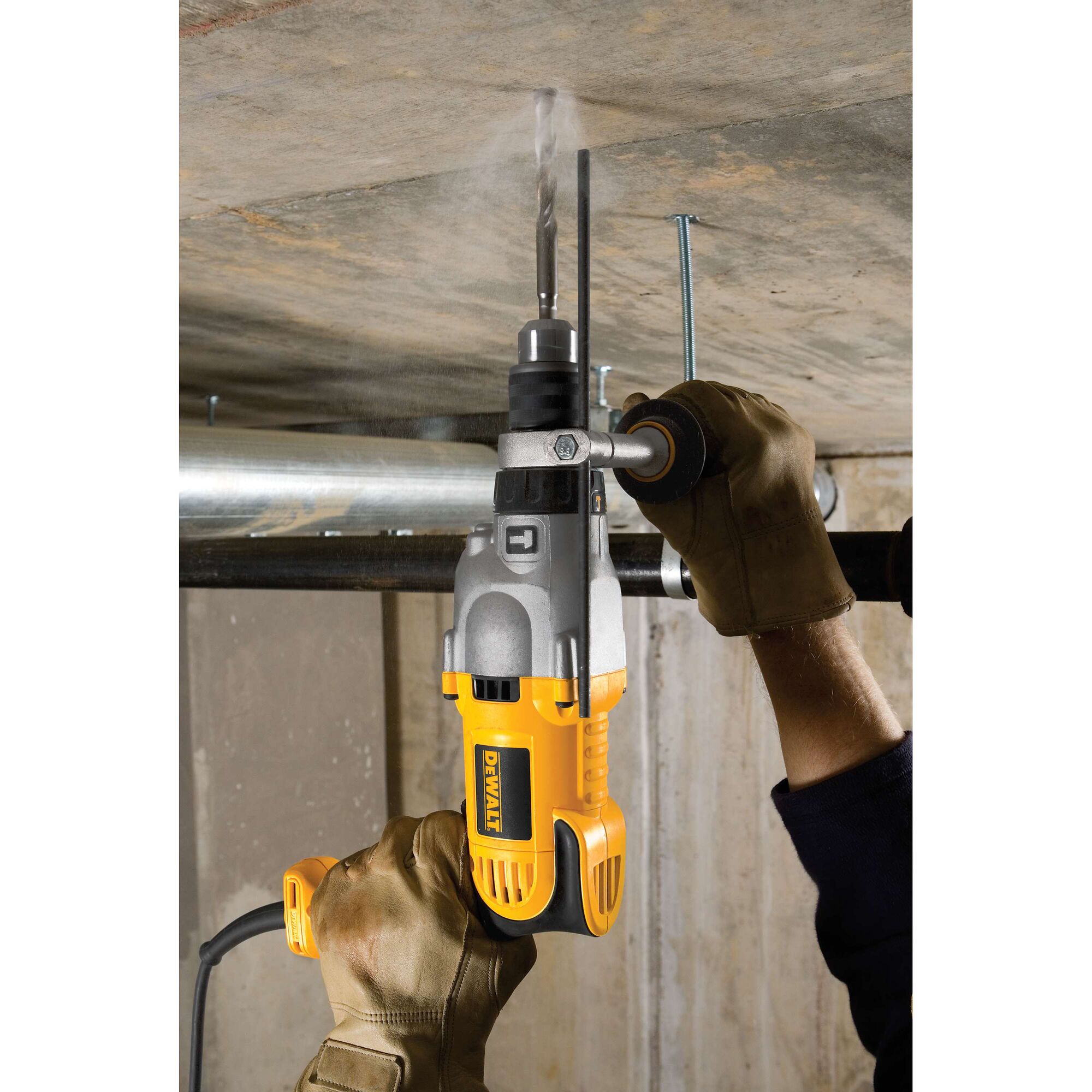

V S R pistol grip hammerdrill being used to drill into ceiling.
V S R pistol grip hammerdrill being used by a construction worker.
V S R pistol grip hammerdrill being used to drill into metal.
Close up of dual mode feature of vsr pistol grip hammerdrill.
Close up of metal gear housing feature of vsr pistol grip hammerdrill.
Inside view of motor of vsr pistol grip hammerdrill.
Inside view of vsr pistol grip hammerdrill.
DWD520

1/2 in. VSR™ Pistol Grip Hammer Drill

  • 10 amp motor delivers increased drilling performance
  • Patented DEWALT®-built motor design generates 50% more power with increased overload protection for added durability
  • Dual Mode: hammerdrill / drill for versatility in masonry, wood, or steel drilling applications
View more features

Product Overview

Complete masonry, wood, or steel applications with the 1/2 in. VSR™ Pistol Grip Hammer Drill. Featuring a 2-speed range and a soft-grip handle, this high-performance drill elevates user's comfort and control during tough jobs.

Additional Features

  • 2-Speed range for high-speed drilling or high-torque applications
  • Soft grip handle and two-finger trigger for increased comfort and greater control
  • Metal-gear housing for jobsite durability and increased reliability
  • 360-degree locking side handle with soft grip for greater control and versatility

Applications

  • Ideal for installation and removal of Tapcon®/Tapper™ concrete screw anchors
  • Optimal drilling applications in concrete from 3/16" to 3/8"
  • Maximum drilling applications in concrete up to ½"
  • Drilling applications in wood up to 1-1/2"
  • Drilling applications in steel up to ½"

Includes

  • (1) 360° Locking Side Handle
  • (1) Steel Depth Rod
  • (1) Chuck Key With Holder

Specifications

Chuck size
1/2 in
No Load Speed (RPM)
0-1200 / 0-3500
Weight (Including Battery)
6 lbs
Tool Weight
6 lbs
Impact Rate per Min.
0-56000
Max. Watts Out
1100 W
Variable Speed
Yes
Power Source
Corded
Is it a Set
No
Product Weight
6 lbs
Power
1100 W

Support

3 Year Limited Warranty, 1 Year Free Service, 90 Days Satisfaction Guaranteed

We’re confident of the quality of our products, and we’ll repair, without charge, any defects due to faulty materials or workmanship within the specified warranty.
