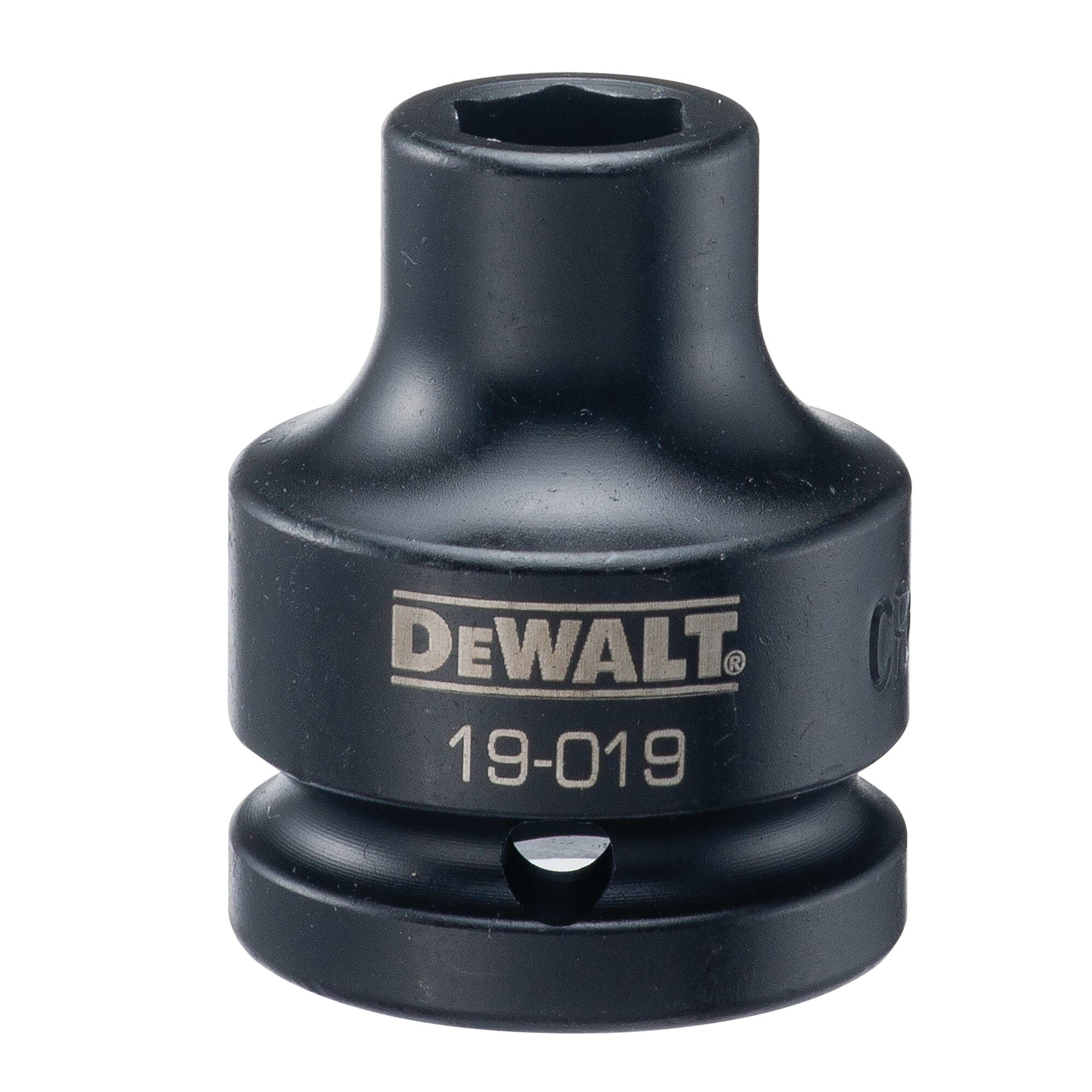

3/4 in Drive Impact Sockets 6 pt
Discontinued DWMT19019
3/4 in Drive Impact Sockets 6 pt
- Heat treated CR-440 steel
- DirectTorque™ Technology
- High visibility laser etched markings
Discontinued DWMT19019
3/4 in Drive Impact Sockets 6 pt
- Heat treated CR-440 steel
- DirectTorque™ Technology
- High visibility laser etched markings
Product Details
Downloads
These Impact Sockets have DirectTorque™ technology to help prevent rounding of fasteners and to provide better grip. The socket sizes are clearly shown in large font for easy identification during use.
- O-ring and retaining pin compatible
- Black oxide coating
Unfortunately, the warranty information cannot be retrieved for this specific product. Please review the information about our warranties.
We take extensive measures to ensure all our products are made to the very highest standards and meet all relevant industry regulations.
| Product nameFind the right size | SKU | Nut End Outside Diameter [in] | Drive End Outside Diameter [in] | Nut Depth [in] | Bolt Clearance Depth [in] | Overall Length [in] | ||
|---|---|---|---|---|---|---|---|---|
| 3/4 in Drive 6 pt Impact Socket 1-11/16 in | DWMT19011 | 2-1/2 | 1-25/32 | 1-1/16 | 1-1/2 | 2-7/16 | ||
| 3/4 in Drive 6 pt Impact Socket 1-13/16 in | DWMT19012 | 2-19/32 | 1-25/32 | 1-3/32 | 1-1/2 | 2-11/16 | ||
| 3/4 in Drive 6 pt Impact Socket 1-15/16 in | DWMT19013 | 2-3/4 | 1-25/32 | 1-5/16 | 1-5/8 | 2-3/4 | ||
| 3/4 in Drive 6 pt Impact Socket 1-3/4 in | DWMT19015 | 2-17/32 | 1-25/32 | 1-1/16 | 1-1/2 | 2-7/16 | ||
| 3/4 in Drive 6 pt Impact Socket 1-5/8 in | DWMT19016 | 2-9/32 | 1-25/32 | 31/32 | 1-1/4 | 2-7/16 | ||
| 3/4 in Drive 6 pt Impact Socket 1-7/8 in | DWMT19017 | 2-11/16 | 1-25/32 | 1-5/32 | 1-5/8 | 2-11/16 | ||
| 3/4 in Drive 6 pt Impact Socket 1-9/16 in | DWMT19018 | 2-7/32 | 1-25/32 | 31/32 | 1-1/4 | 2-7/16 | ||
| 3/4 in Drive 6 pt Impact Socket 1/2 in | DWMT19019 | 7/8 | 1-9/16 | 5/8 | 25/32 | 1-31/32 | ||
| 3/4 in Drive 6 pt Impact Socket 11/16 in | DWMT19021 | 1-5/32 | 1-9/16 | 5/8 | 25/32 | 1-31/32 | ||
| 3/4 in Drive 6 pt Impact Socket 2 in | DWMT19024 | 2-25/32 | 2-1/8 | 1-5/16 | 1-5/8 | 2-27/32 | ||
| 3/4 in Drive 6 pt Impact Socket 5/8 in | DWMT19036 | 1-3/32 | 1-9/16 | 5/8 | 25/32 | 1-31/32 | ||
| 3/4 in Drive 6 pt Impact Socket 9/16 in | DWMT19037 | 1 | 1-9/16 | 5/8 | 25/32 | 1-31/32 | ||
| 3/4 in Drive 6 pt Impact Socket 1 in | DWMT75154 | 1-9/16 | 1-9/16 | 23/32 | 25/32 | 2-1/16 | ||
| 3/4 in Drive 6 pt Impact Socket 1-1/16 in | DWMT75155 | 1-9/16 | 1-9/16 | 23/32 | 25/32 | 2-1/16 | ||
| 3/4 in Drive 6 pt Impact Socket 1-1/2 in | DWMT75156 | 2-3/32 | 1-25/32 | 15/16 | 1-1/4 | 2-7/32 | ||
| 3/4 in Drive 6 pt Impact Socket 1-1/4 in | DWMT75157 | 1-13/16 | 1-23/32 | 23/32 | 31/32 | 2-1/16 | ||
| 3/4 in Drive 6 pt Impact Socket 1-1/8 in | DWMT75158 | 1-21/32 | 1-21/32 | 3/4 | 31/32 | 2-1/16 | ||
| 3/4 in Drive 6 pt Impact Socket 13/16 in | DWMT75159 | 1-1/4 | 1-9/16 | 23/32 | 25/32 | 2-1/16 | ||
| 3/4 in Drive 6 pt Impact Socket 1-3/16 in | DWMT75160 | 1-23/32 | 1-23/32 | 3/4 | 31/32 | 2-1/16 | ||
| 3/4 in Drive 6 pt Impact Socket 1-3/8 in | DWMT75161 | 1-31/32 | 1-23/32 | 7/8 | 1-5/32 | 2-7/32 | ||
| 3/4 in Drive 6 pt Impact Socket 1-5/16 in | DWMT75162 | 1-27/32 | 1-23/32 | 7/8 | 1-5/32 | 2-7/32 | ||
| 3/4 in Drive 6 pt Impact Socket 15/16 in | DWMT75163 | 1-13/32 | 1-9/16 | 23/32 | 25/32 | 2-1/16 | ||
| 3/4 in Drive 6 pt Impact Socket 1-7/16 in | DWMT75164 | 2 | 1-25/32 | 7/8 | 1-5/32 | 2-7/32 | ||
| 3/4 in Drive 6 pt Impact Socket 3/4 in | DWMT75170 | 1-3/16 | 1-9/16 | 5/8 | 25/32 | 1-31/32 | ||
| 3/4 in Drive 6 pt Impact Socket 7/8 in | DWMT75178 | 1-11/32 | 1-9/16 | 23/32 | 25/32 | 2-1/16 |
