DCCS1100B

20V MAX* XR® Concrete Chemical Sprayer (Tool-Only)

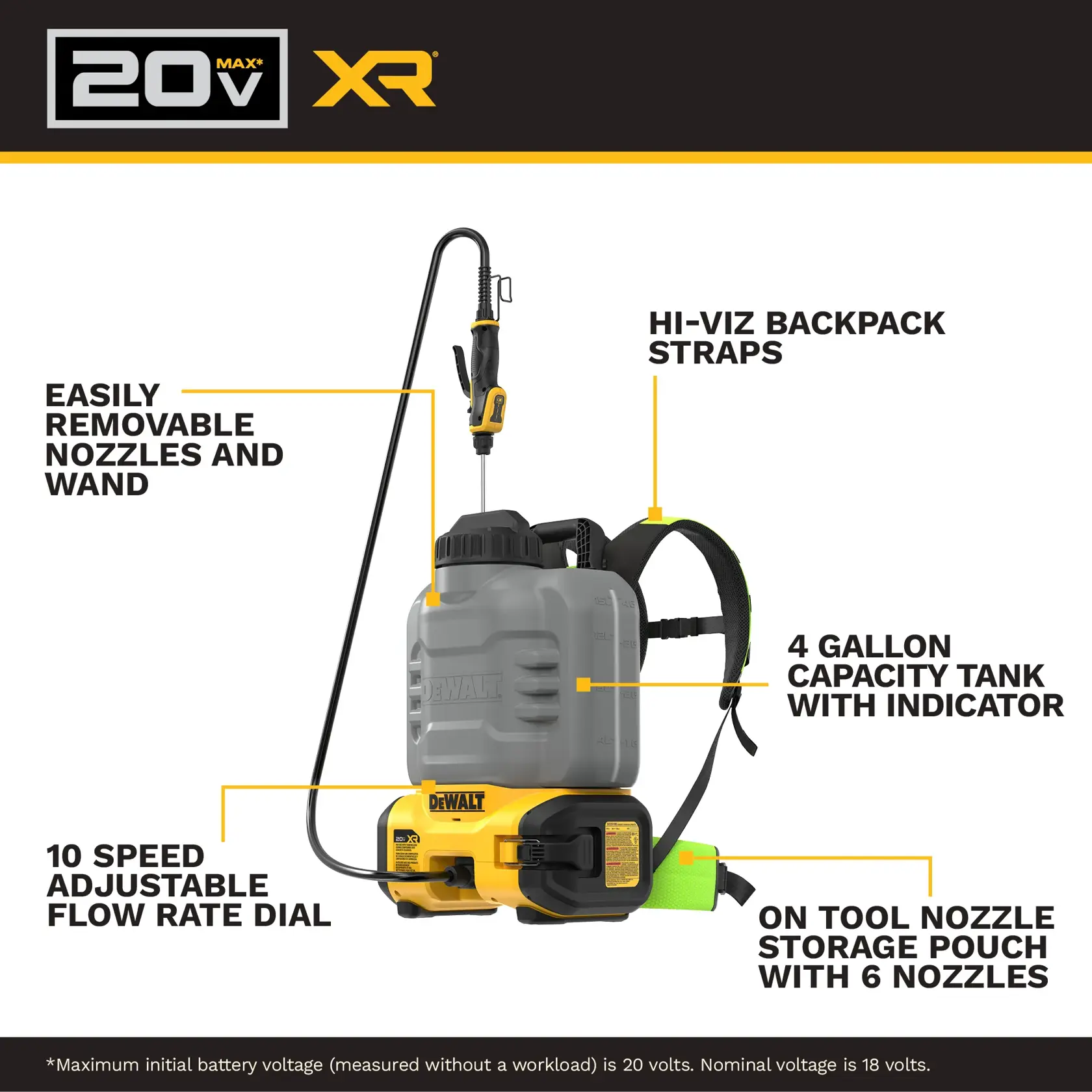

DEWALT cordless battery-powered backpack sprayer with a grey tank, bright yellow base, and a long black hose with a spray handle.

Reviews

Product details

Complete rigorous concrete chemical and concrete spraying applications with the 20V MAX* XR® concrete chemical sprayer (battery and charger sold separately). With up to 150 PSI of spray pressure and a 10-speed adjustable flow rate of up to .8 gallons per minute‡, DEWALT®'s best performing 20V MAX* concrete chemical sprayer† delivers the power and flow needed to help you get the job done right. This sprayer combined with the DCBP520G battery (sold separately) gives you the ability to cover up to 10,000 sq. Yards‡‡ spraying 70 gallons of fluid on a single charge. This sprayer also includes hi-viz backpack straps for easy mobility and 6 interchangeable nozzles for the versatility demanded on a wide range of concrete jobsites.

  • Next-generation Performance - Take on concrete spraying applications with DEWALT®'s best performing 20V MAX* concrete chemical sprayer†.

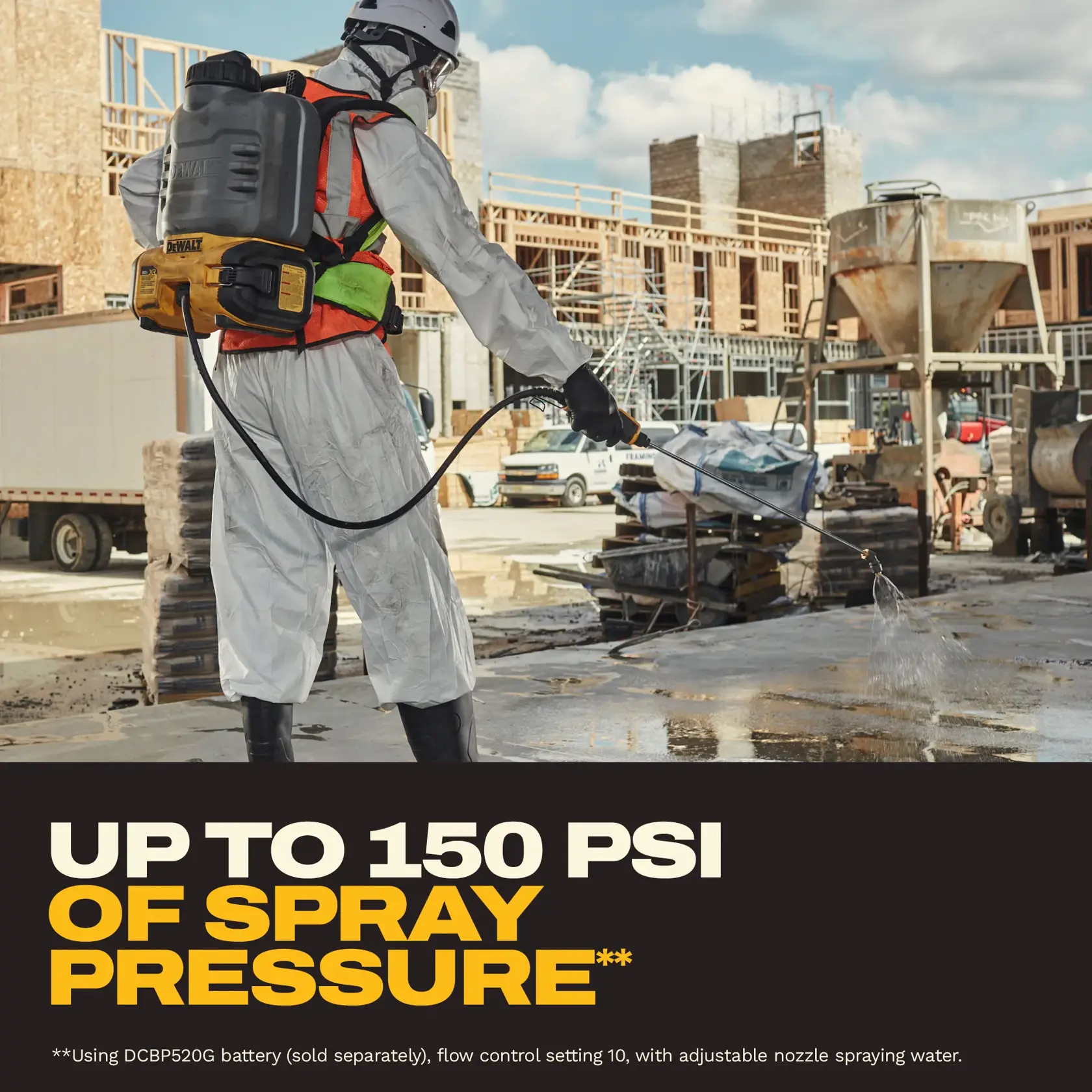

  • Powerful Spray - Get up to 150 PSI of spray pressure and up to 37-ft Of spray distance††.

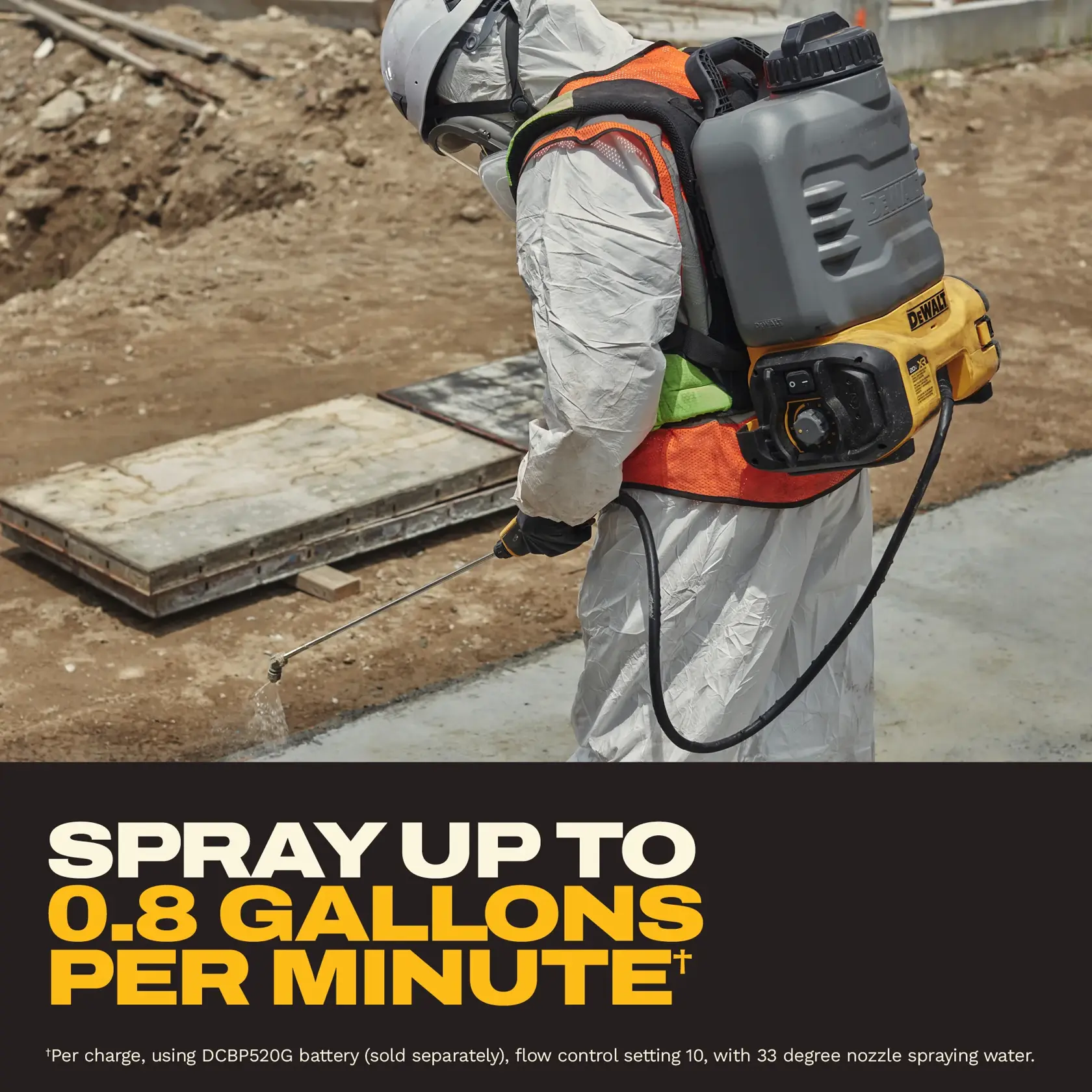

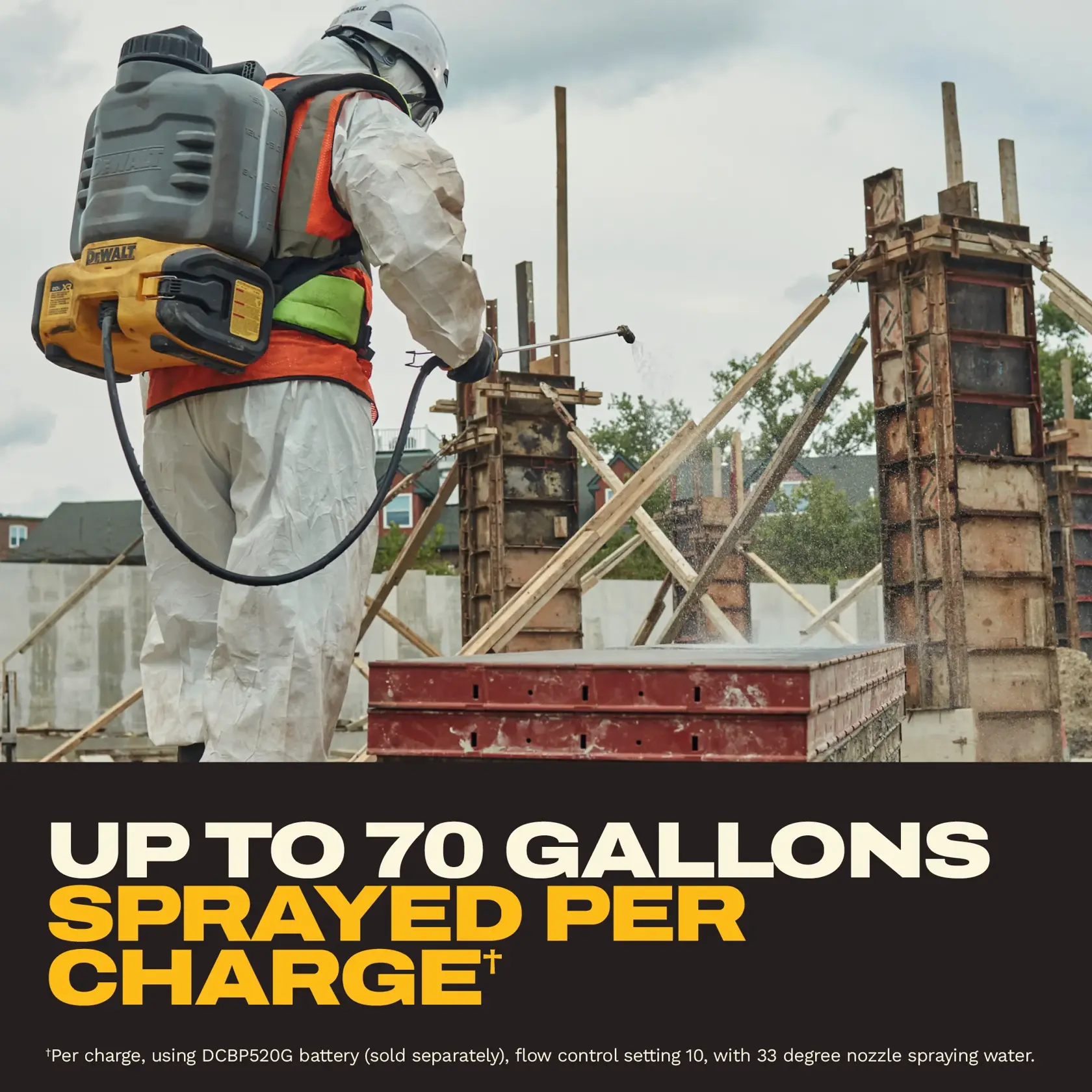

  • Spray Up to 0.8 Gallons Per Minute‡ - Help maximize productivity with up to 70 gal. Sprayed per charge and up to 10,000 square yards of coverage‡‡.
  • Extensive Compatibility - Compatible only with the most common brands of curing compounds, form releases, and concrete cleaning compounds (refer to manual for list of compatible chemicals.)
  • Adjustable Flow Rate - Adjust tool performance to the task at hand with a 10-speed adjustable flow rate dial.
  • On-board Storage - Conveniently house and organize the included nozzles in the on-tool storage pouch.
  • Carrying Convenience - Comfortably transport around the jobsite with two (2) hi-viz backpack straps.
  • State-of-charge Level - Quickly check battery charge levels with the battery gauge indicator located on the sprayer handle.
  • Enclosed Battery Housing - Help protect battery from damage with an enclosed battery housing.
  • Included Nozzles - Complete Various Applications With (6) Nozzle Types Including : Brass large flow 33° nozzle, brass medium flow 42° nozzle, brass small flow 62° nozzle, adjustable brass nozzle, foaming nozzle, and jet stream nozzle.

Product Type
Sprayer
Voltage
20V
Cordless or Corded
Cordless
Power Source
Battery
Tool Only
Yes

  • (1) DCCS1100 Concrete Chemical Sprayer
  • (1) Sprayer Wand
  • (1) Adjustable Brass Nozzle
  • (1) Large Flow 33 Degree Nozzle
  • (1) Medium Flow 42 Degree Nozzle
  • (1) Small Flow 62 Degree Nozzle
  • (1) Jet Stream Nozzle
  • (1) Foaming Nozzle

  • 3 Year Limited Warranty

Downloads and manuals

Instruction Manual, Type 1
NA684165_DCCS1100_NA.pdf
PDF
Instruction Manual, Type 1
NB418596_DCCS1100_NA.299328.pdf
PDF
Exploded Diagram, Type 1
DCCS1100.svg
SVG
