DCD1624B

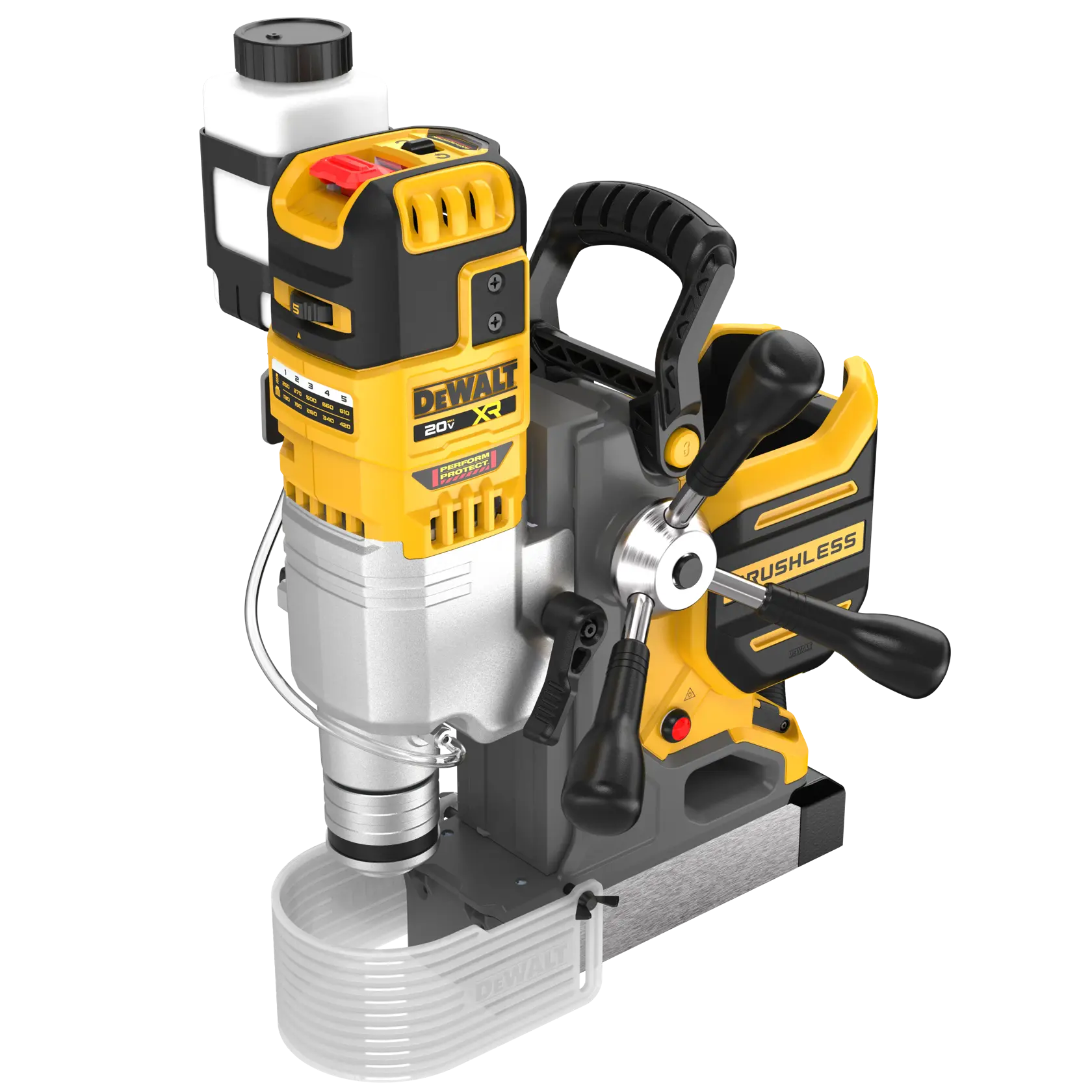

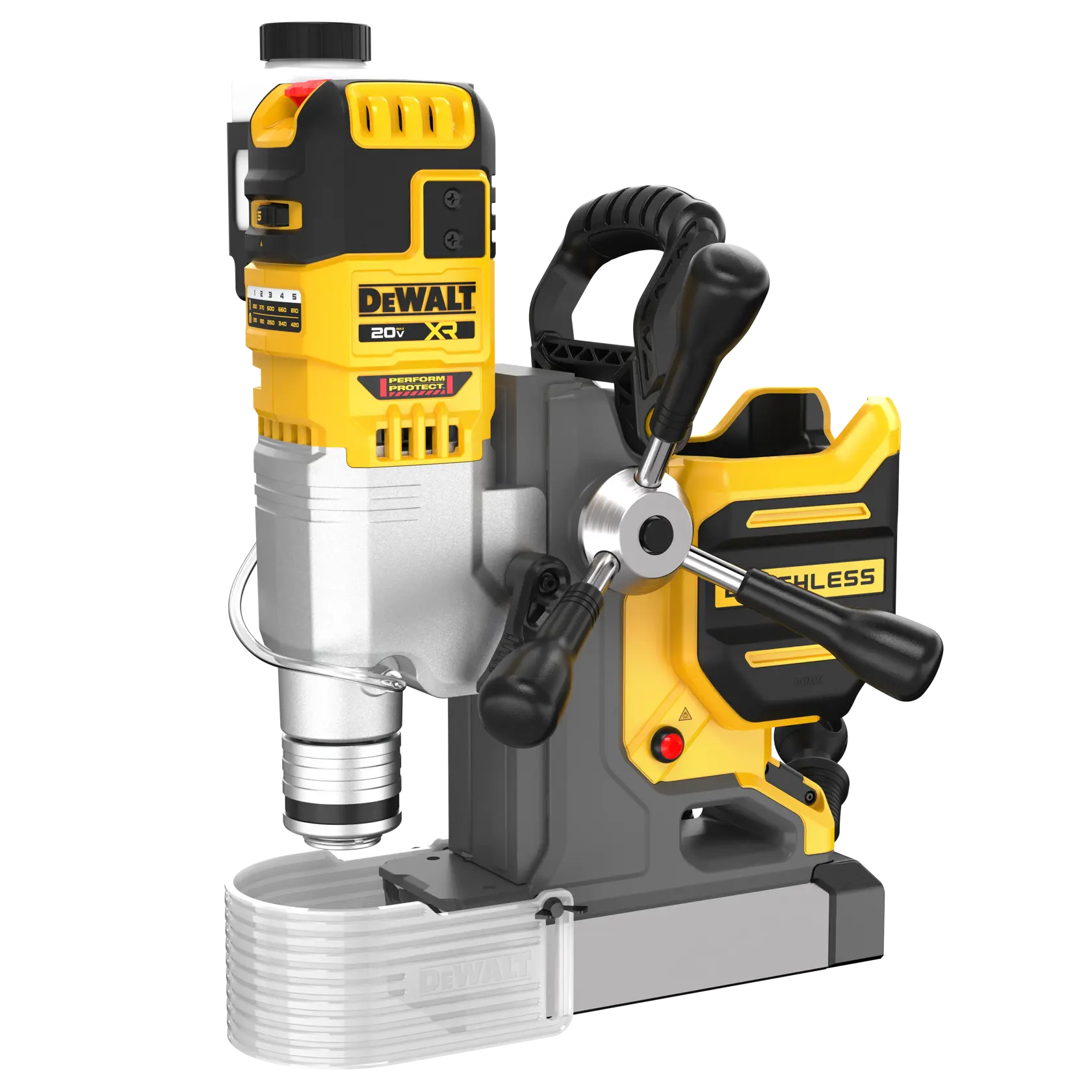

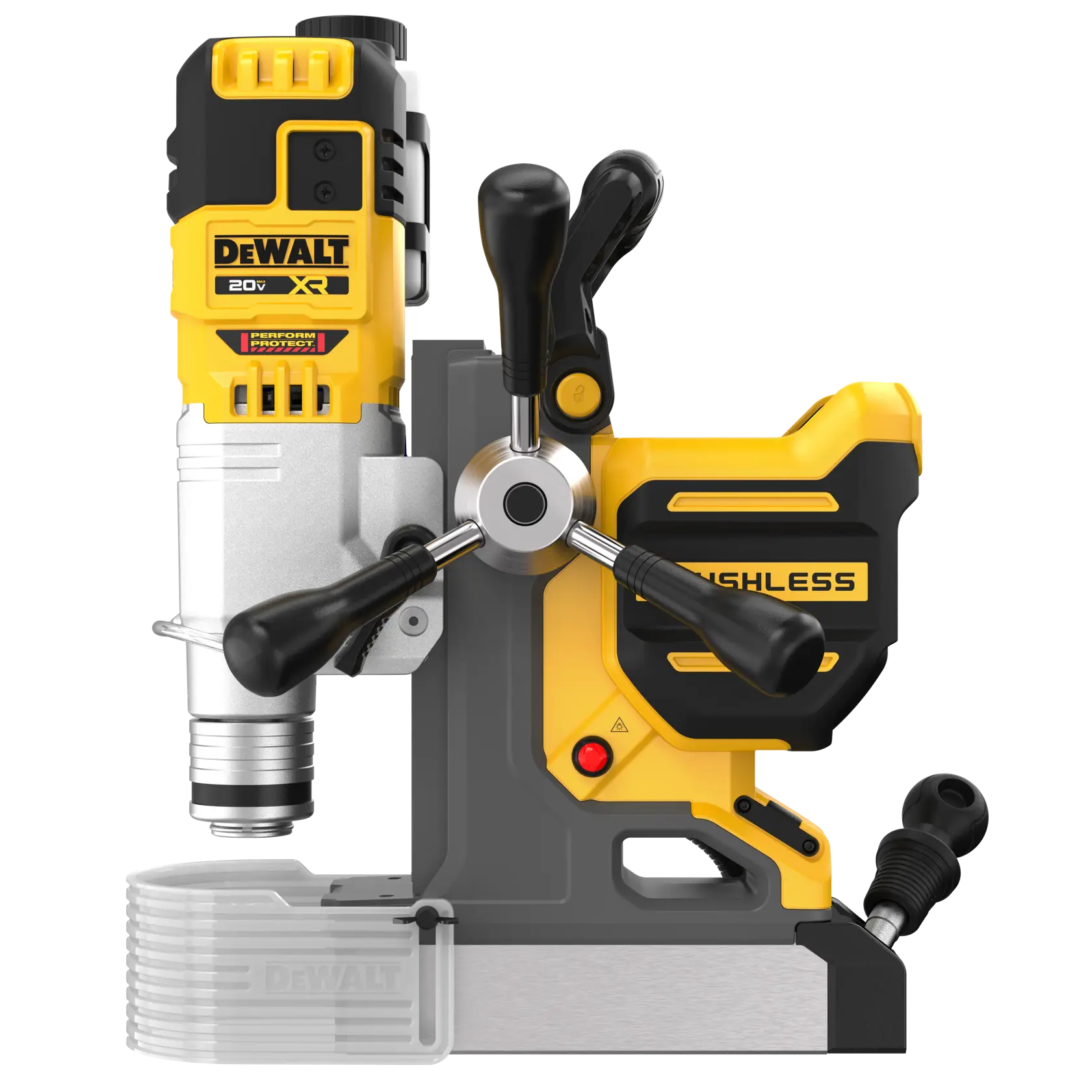

20V MAX* XR® 2-in. Cordless Brushless Magnetic Drill Press (Tool Only)
Reviews
Explore More Options
Current Option
Product details

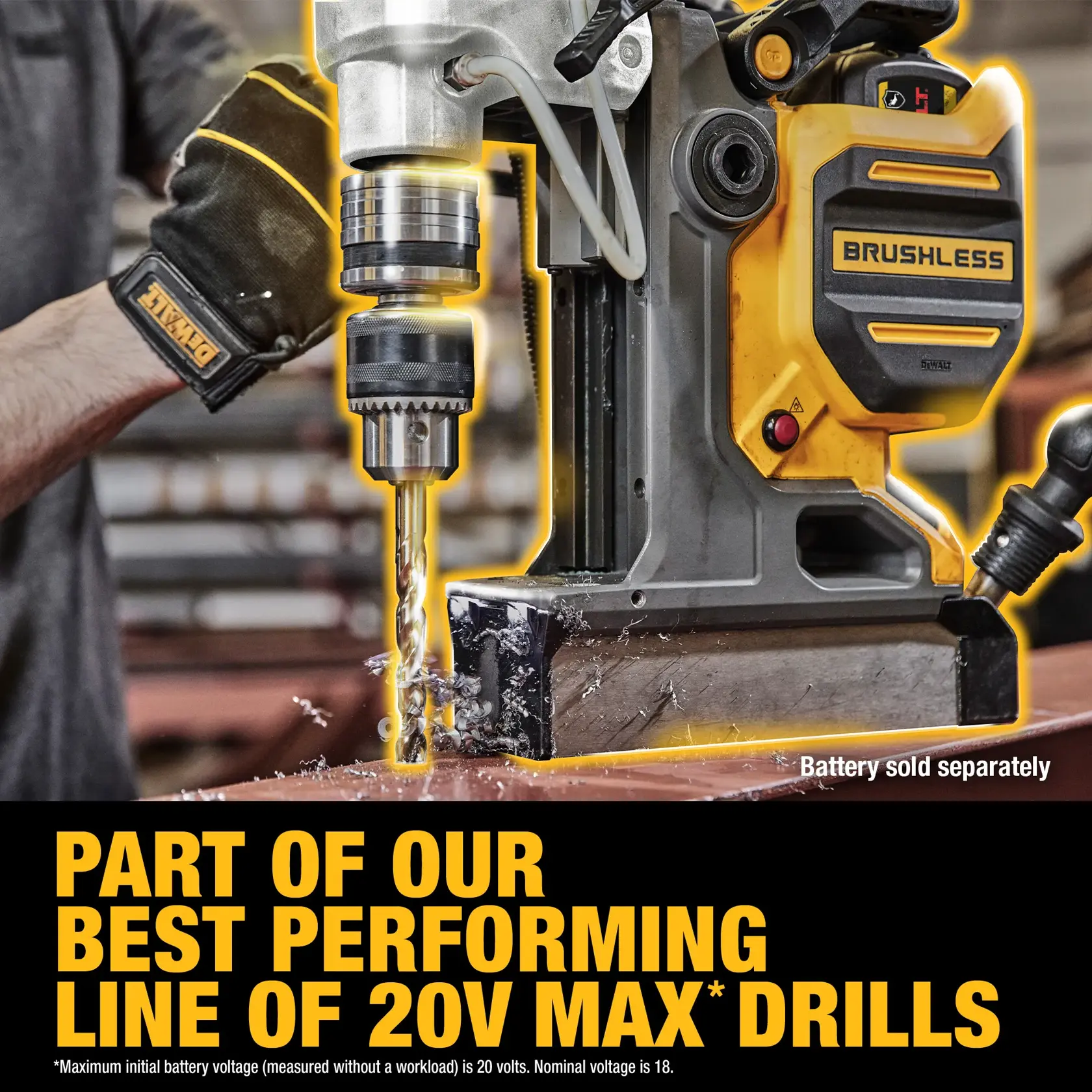

Take on demanding applications with the 20V MAX* XR® 2 in. Magnetic drill press (battery and charger sold separately), part of the most powerful line of 20V MAX* drills from DEWALT®"¡. Power through tough jobs with a high-drilling capacity that creates up to a 2 in. Hole through 2 in. Of structural steel. Help maximize user control with a 2-speed mechanical transmission and 5 variable speeds (for a total of 10 different settings.) complete with a quick change chuck system that allows for tool-free changes between 3/4 in. Weldon-style shank" " and 5/8 in. Keyed chuck as well as Tool Connect capability, this drill is ready for challenging jobsites. Battery & charger sold separately

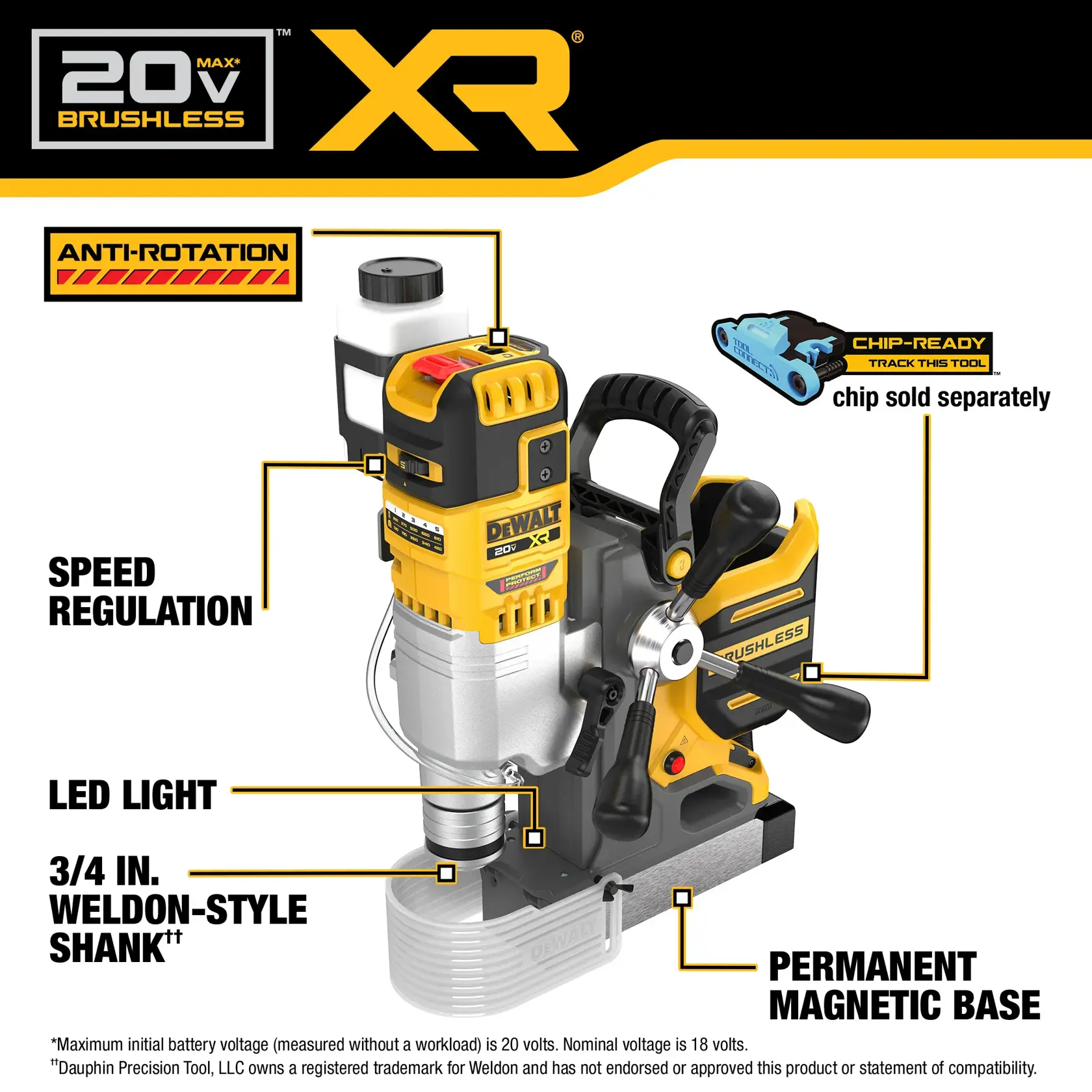

- High Drilling Capacity - Drill up to a 2 in. Hole through 2 in. Of structural steel.

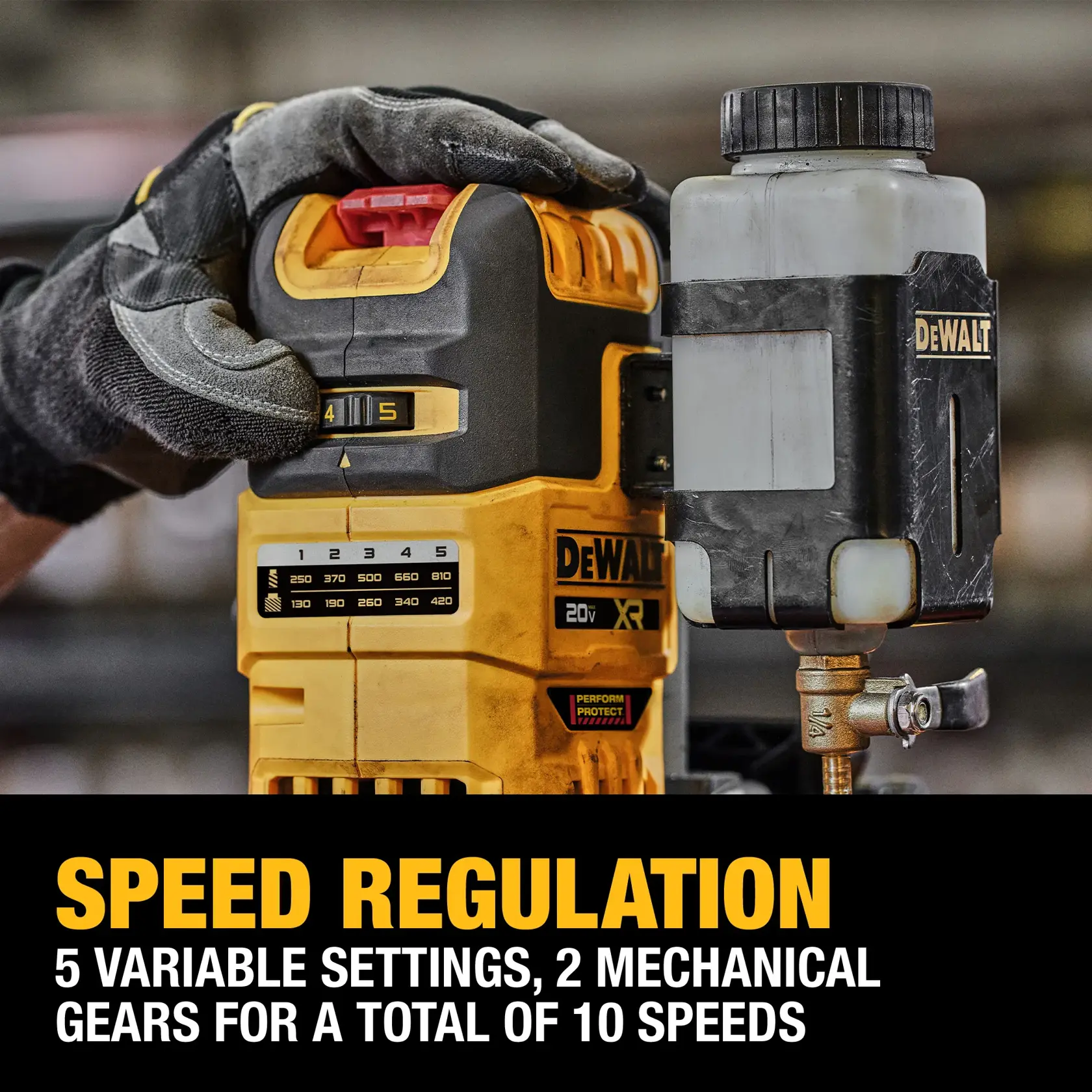

- Speed Regulation - Match speed to the application with 5 variable settings for each of the 2 mechanical gears for a total of 10 speeds.
- Permanent Magnetic Base - Quickly attach to steel with no electrical charge required.
- Tool-free Adjustments - Switch between bits with 3/4 in. Weldon-style shank" " and 5/8 in. Keyed chuck with ease by using the quick change chuck system, no tools necessary.
- Help Maximize Control - Equipped with the anti-rotation system that senses the rotational motion of the tool and shuts it down if the motion is excessive.
- Performance Versatility - Make adjustments using the forward/reverse switch feature to allow for a wide range of applications, including tapping.
- Convenient Onboard LED - Help illuminate your drilling area with the bright onboard LED.

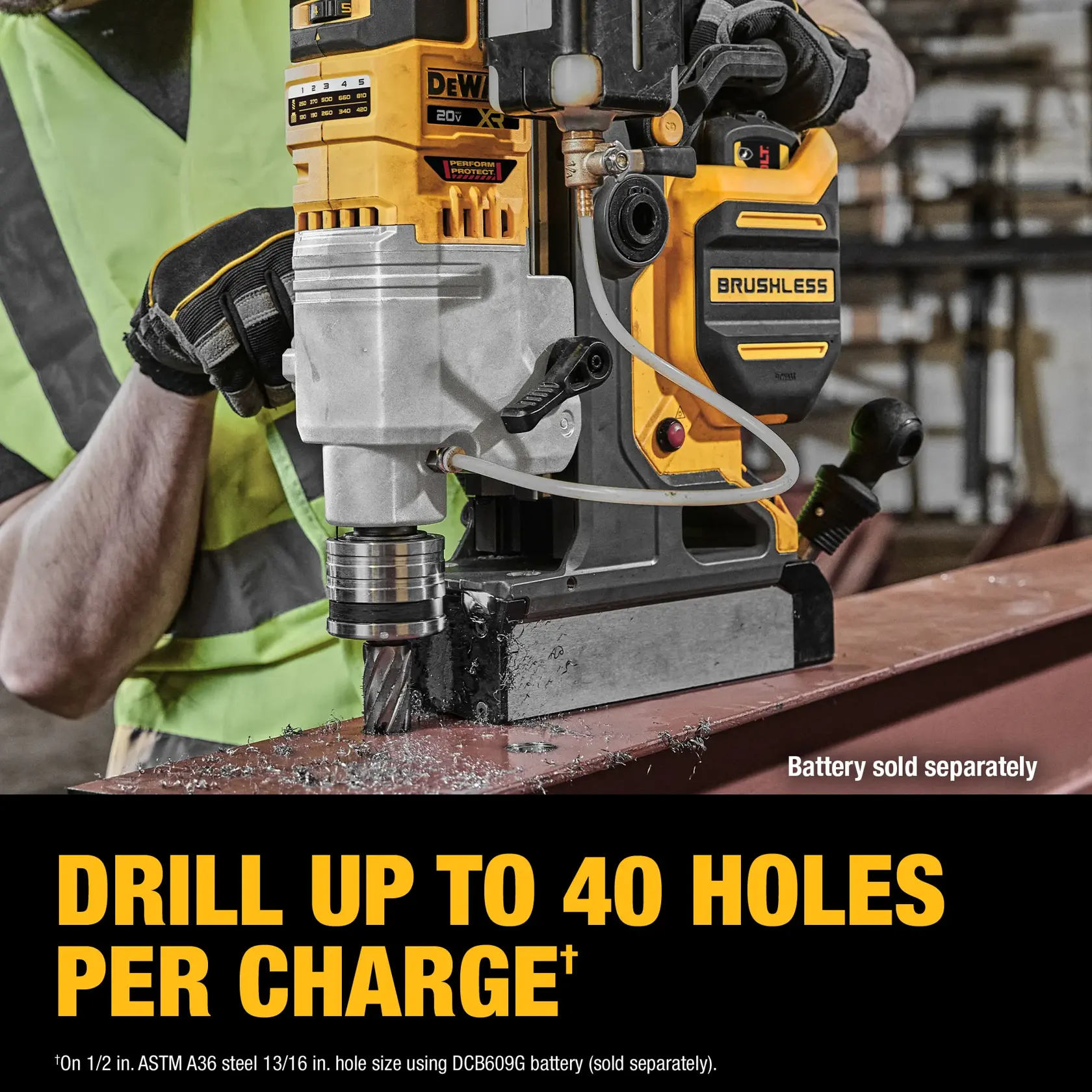

- Up to 40 Holes Per Charge" - Power through demanding work with efficient performance.
- Accessory Compatibility - Utilize a variety of accessories with the motor height adjustment feature.
- Simplify Asset Management - This Tool Connect Chip ready (chip sold separately) tool connects with the Tool Connect Site Manager app to help you track and manage assets.
Product Type
Drill Press
Voltage
20V
Cordless or Corded
Cordless
Power Source
Battery
Motor Type
Brushless
- (1) DCD1624 DEWALT 20V MAX* XR® 2 in. Magnetic Drill Press
- (1) Allen Key
- (1) Wrench
- (2) Wing Bolts
- (1) 5/8 in. Keyed Chuck Attachment
- (1) Chuck Key
- (1) Fluid Reservoir with Tube
- (1) Chip Guard
- (1) Safety Chain
- (2) Ejection Pins
- (1) Feed Handle Set
- (1) Reservoir Bracket
- 3 Year Limited Warranty, 1 Year Free Service, 90 Days Satisfaction Guaranteed
We take extensive measures to ensure all our products are made to the very highest standards and meet all relevant industry regulations.
Customer Support* *Maximum initial battery voltage (measured without a workload) is 20 volts. Nominal is 18.
* †Drill Up To 40 Holes Per Charge on 1/2 in. ASTM A36 steel 13/16 in. hole size using DCB609G battery (sold separately).
* ††Dauphin Precision Tool, LLC owns a registered trademark for Weldon and has not endorsed or approved this product or statement of compatibility
* ‡Rated MWO.
