DCF514B

ATOMIC™ 20V MAX* Brushless Cordless 1/4-in Ratchet (Tool Only)

A DEWALT brushless cordless ratchet tool with a black and yellow design, shown against a white background.

Reviews

Product details

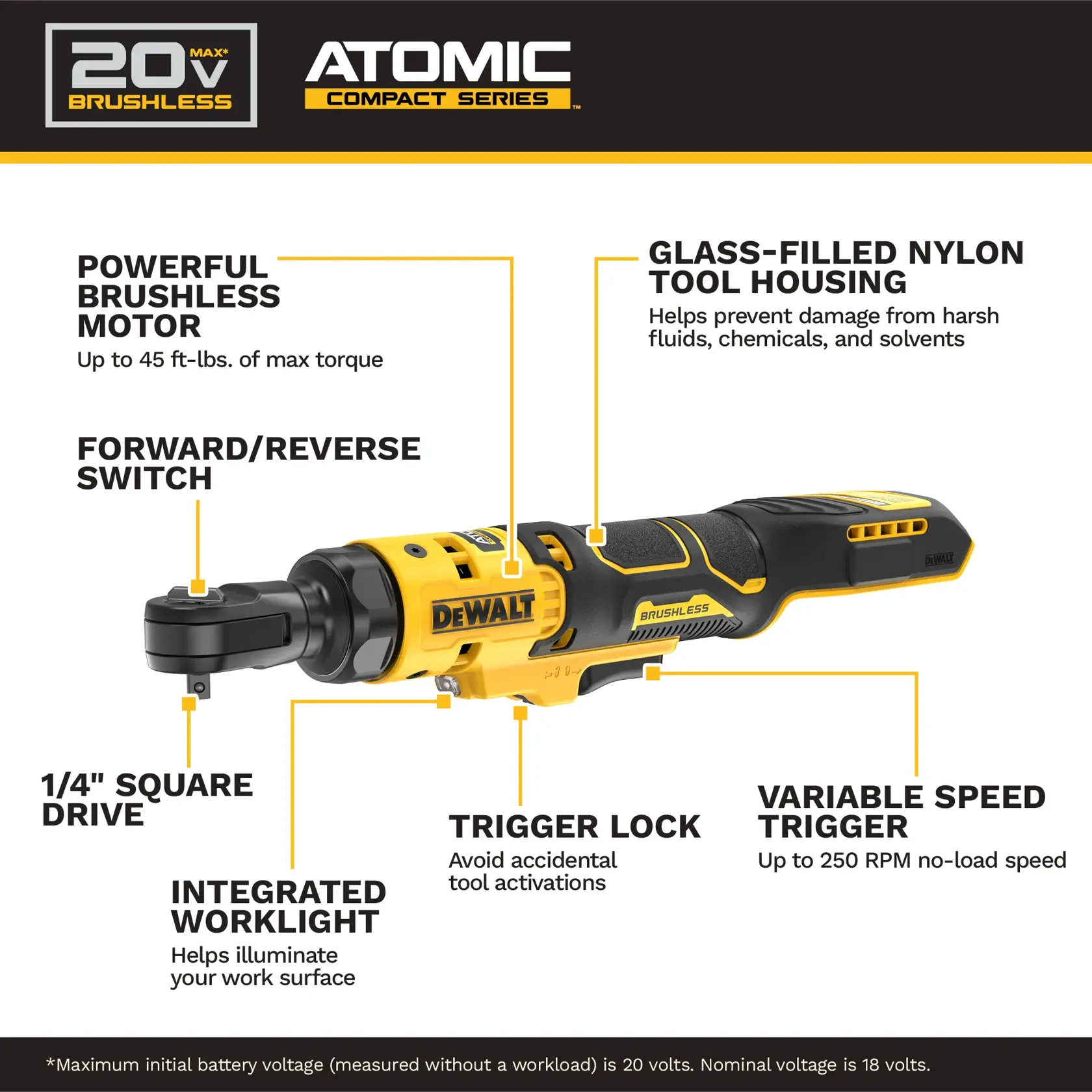

Designed to deliver up to 250 RPM (no-load speed) and up to 45-ft-lbs. of max torque, the ATOMIC™ 20V MAX* Brushless Cordless 1/4-in Ratchet (battery and charger sold separately) removes stubborn fasteners for a wide range of professional applications. This tool features a variable speed trigger, easy-to-access forward/reverse switch, and trigger lock that helps prevent accidental activations. Ideal for harsh environments, this ratchet features a glass-filled nylon tool housing engineered to help resist damage from harsh chemicals and solvents.

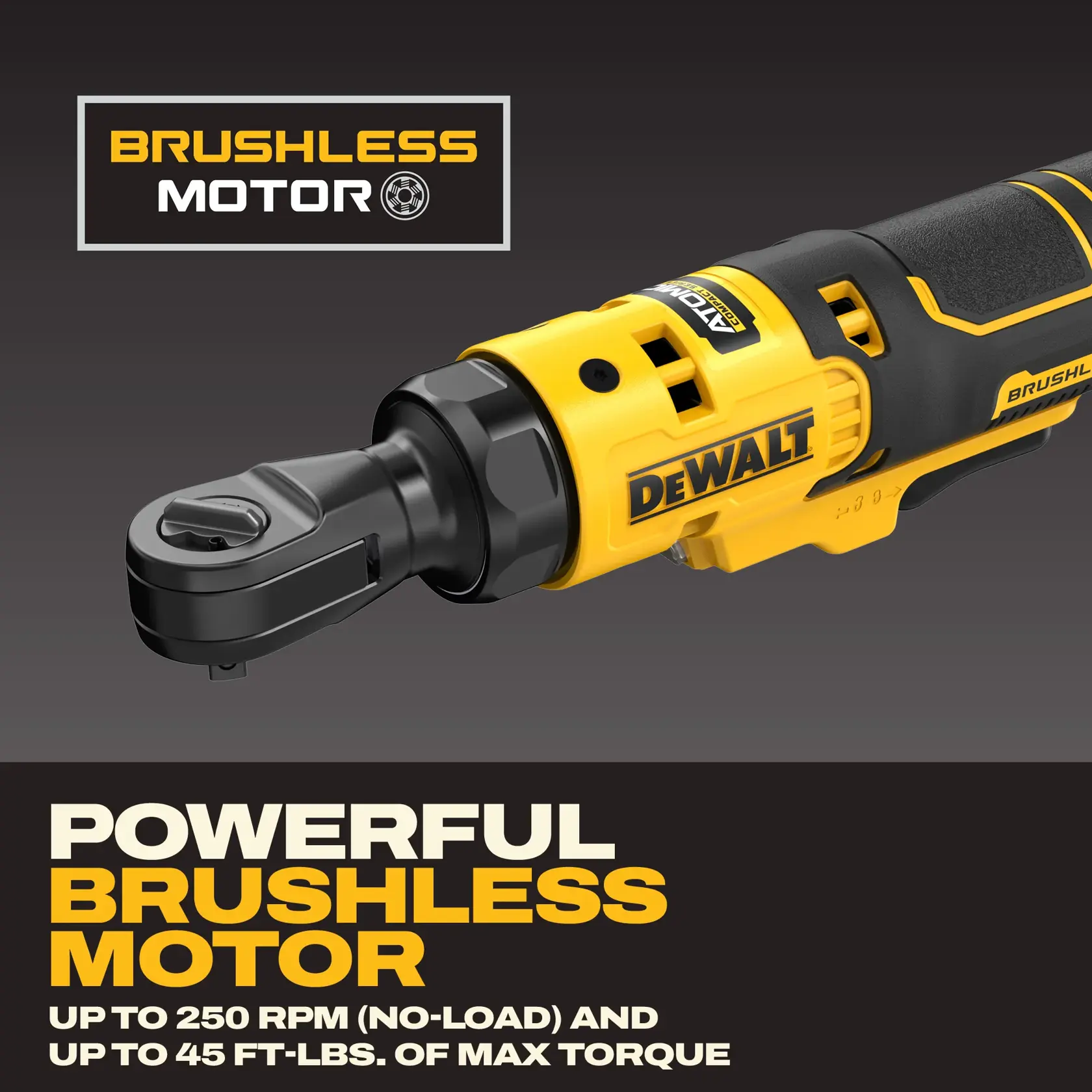

  • Powerful Brushless Motor - Complete challenging applications with up to 250 RPM (no-load) and up to 45-ft-lbs. of max torque.
  • Help Optimize Performance - Match the speed of your tool to your application with a variable speed trigger.
  • Ergonomically Designed - Easily change between forward and reverse with greasy hands or while wearing gloves.
  • Durable Tool Housing - Help prevent damage from harsh fluids, chemicals, and solvents with a glass-filled nylon tool housing.
  • Trigger Lock - Apply the integrated trigger lock to avoid accidental tool activations.
  • High Visibility - Help illuminate your work surface with a built-in LED.
  • WHERE SIZE MEETS POWER™ - ATOMIC™ compact tools are part of the DEWALT® 20V MAX* system, offering power without compromise.
  • Tool Only - Compatible with DEWALT® 20V MAX* batteries (sold separately)

Product Type
Cordless Ratchet
Voltage
20V
Cordless or Corded
Cordless
Power Source
Battery
Motor Type
Brushless

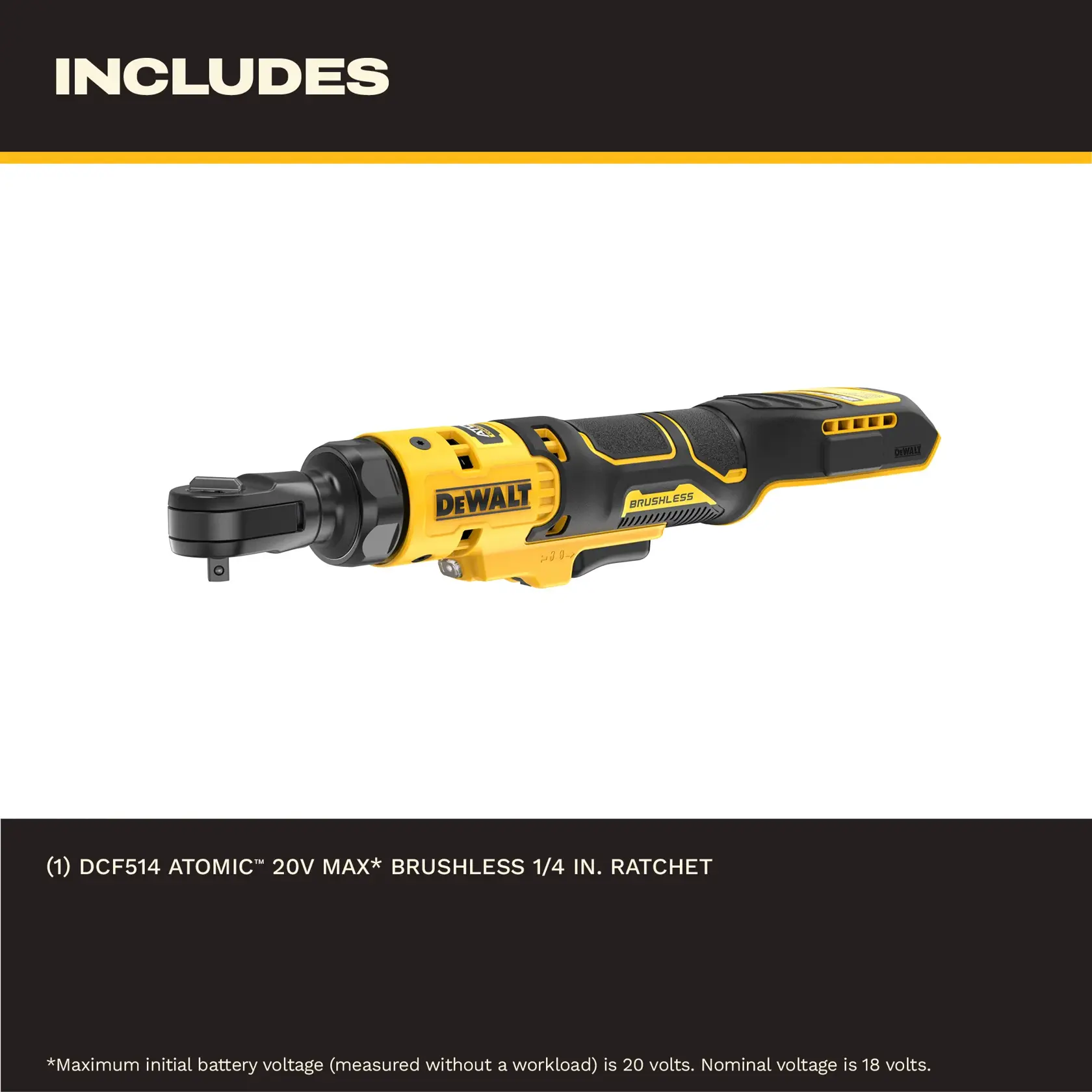

  • (1) DCF514 ATOMIC 20V MAX* Brushless Cordless 1/4-in Ratchet

  • 3 Year Limited Warranty, 1 Year Free Service, 90 Days Satisfaction Guaranteed

* *Maximum initial battery voltage (measured without a workload) is 20 volts. Nominal voltage is 18.

Downloads and manuals

Instruction Manual, Type 1
NB414771_DCF512E_DCF513E_DCF514E_20V_Ratchets_NA.259125.pdf
PDF
Exploded Diagram, Type 1
DCF514_Exploded_Diagram.260624.svg
SVG
