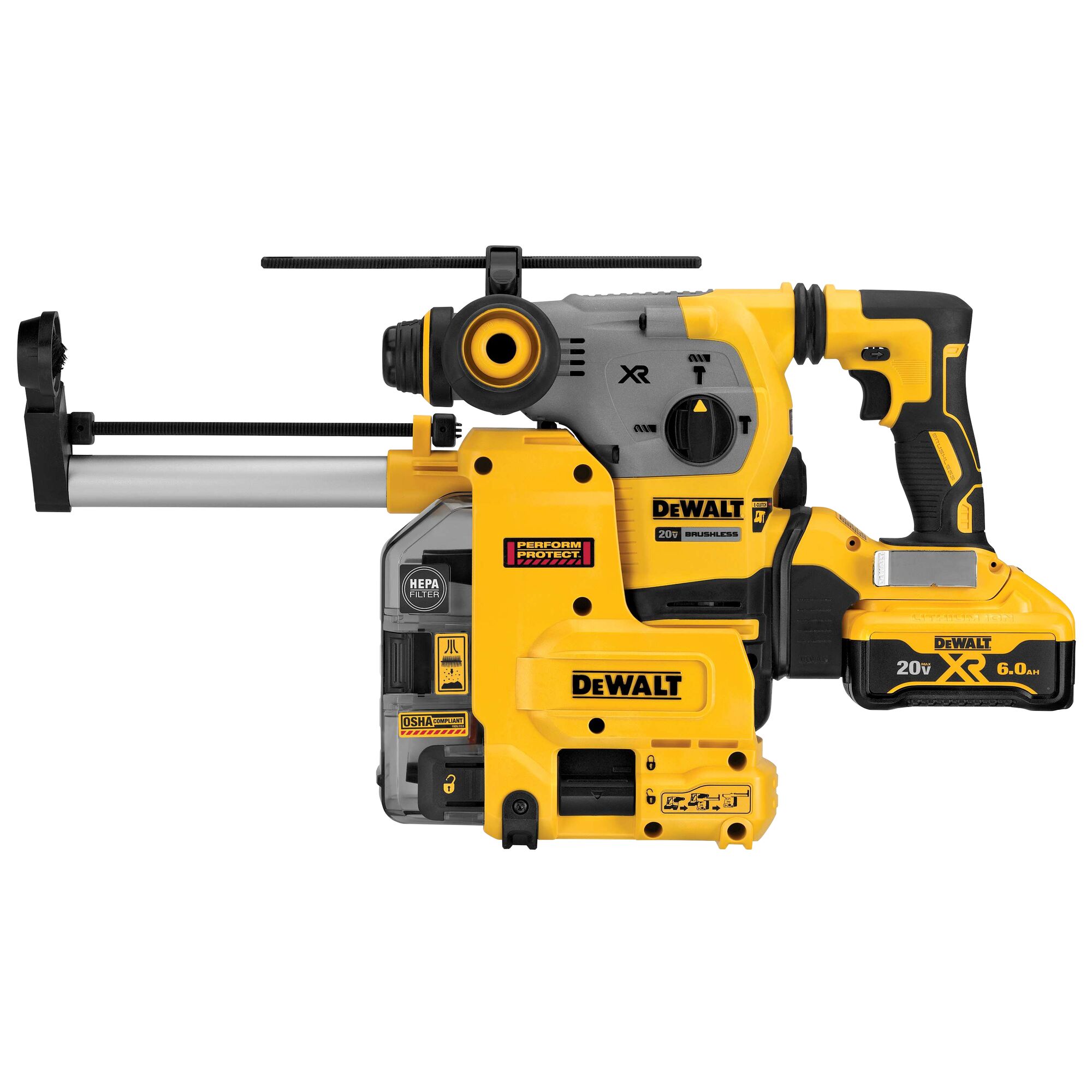

20V MAX* XR® Brushless Cordless 1-1/8 in. L-Shape SDS PLUS Rotary Hammer Kit with On Board Extractor

Product Overview

Complete large-diameter hole drilling with the 20V MAX* XR® 1-1/8 in. Rotary Hammer powered by a brushless motor and a durable German-engineered mechanism. Featuring a balanced design, this high-performance hammer delivers 3.5 Joules of impact energy. Built with safety in mind, this tool has the SHOCKS ACTIVE VIBRATION CONTROL® System and the Anti-Rotation E-CLUTCH® System. Get OSHA Table 1 Compliance when used with the DWH304DH On Board Extractor. For the total solution, this product is packaged with (1) DWH304DH On Board Extractor, (2) 20V MAX* 6Ah batteries, a charger, and a durable kit box for jobsite portability.

Additional Features

  • Anti-Rotation E-CLUTCH® System detects motion of the tool and shuts it down in bind up situations
  • Powerful dust extraction system with built-in motor for increased suction and high tool performance
  • Replaceable dust nozzle
  • Durable, clear high capacity dust box
  • Quick release for easy tool assembly and disassembly
  • Replaceable HEPA filter removes 99.97% of airborne particle 0.3 microns or greater.
  • Adjustable depth stop for accurate anchor hole depths


  • Concrete drilling


  • (1) DCH293 Rotary Hammer
  • (1) DWH304DH On Board Extractor
  • (2) 20V MAX* DCB206 Batteries (6.0 Ah)
  • (1) Charger
  • (1) 360 Degree Side Handle
  • (1) Depth Rod
  • (1) Kit Box



  • 3 Year Limited Warranty, 1 Year Free Service, 90 Days Satisfaction Guaranteed

We’re confident of the quality of our products, and we’ll repair, without charge, any defects due to faulty materials or workmanship within the specified warranty.

Learn More


We take extensive measures to ensure all our products are made to the very highest standards and meet all relevant industry regulations.

Support Manual


  • * Maximum initial battery voltage (measured without a workload) is 20 volts. Nominal voltage is 18.
