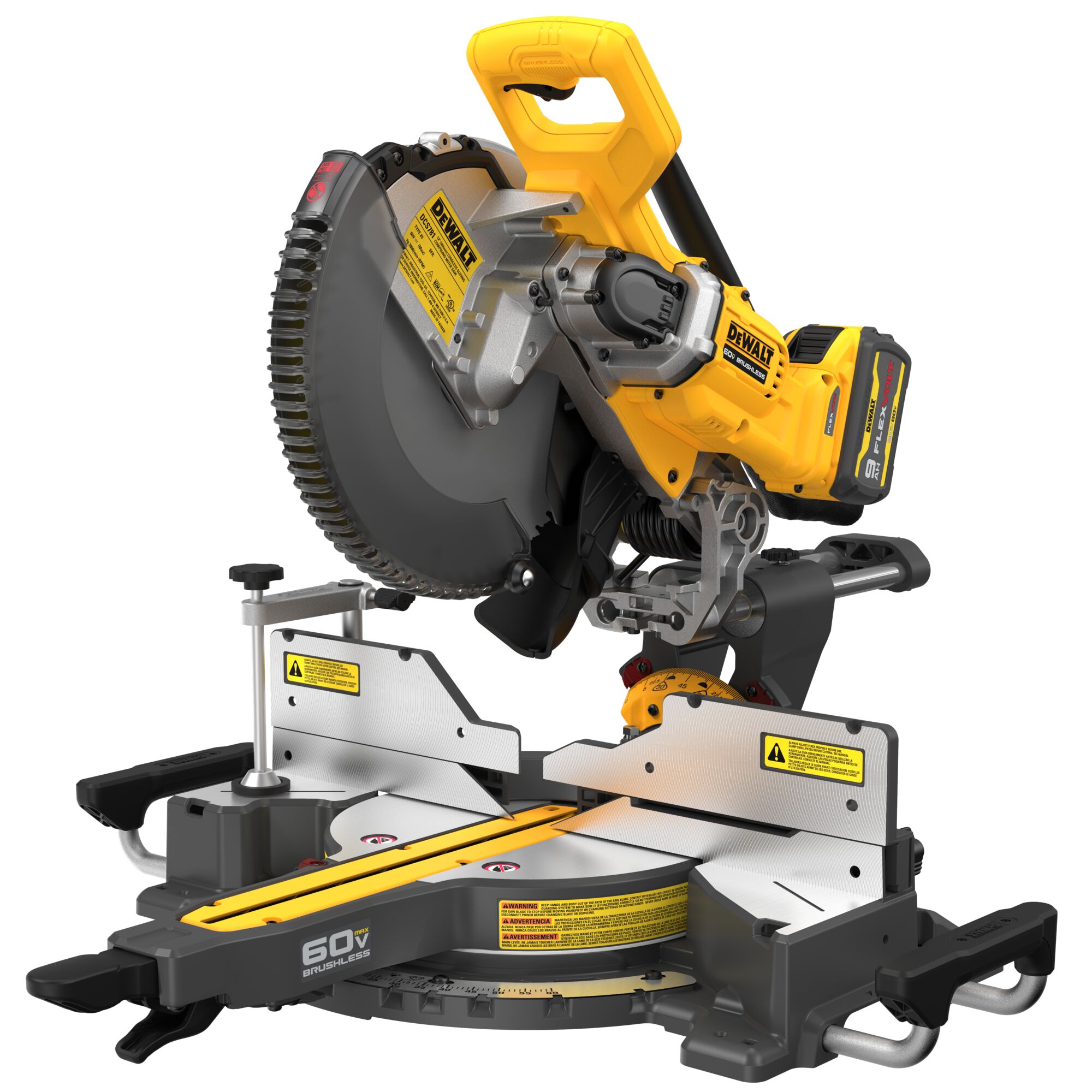

60V MAX* Brushless Cordless 12 in. Double-Bevel Sliding Miter Saw Kit
DCS781X1
60V MAX* Brushless Cordless 12 in. Double-Bevel Sliding Miter Saw Kit
- Single battery operation capable power from 60V MAX* to tackle professional applications
- Exceptional runtime delivers up to 675 cuts in 3 1/4 in. mdf base molding & 255 cuts in pressure treated 4 in. x 4 in. lumber**
- Cut.capture.charge™ regenerative braking technology extends runtime by redirecting lost energy back into the battery
Product Overview
Cut. Capture. Charge™. Tackle demanding woodworking applications with the 60V MAX* 12 in. Double Bevel Sliding Miter Saw featuring Regenerative Braking Technology that extends runtime with virtually every cut. This miter saw features an efficient bevel gear transmission and has the ability to capture up to 94% of dust***. The CUTLINE™ blade positioning system provides accurate cut line indication and updated controls provide a premium experience. At only 50.9 lbs. (tool only), this saw can be moved around demanding jobsites. For user convenience, this kit includes a FLEXVOLT® 20V/60V MAX* Battery, 6 Amp Charger, and Vacuum Adapter.
Additional Features
- Efficient dust capture up to 94% of dust captured when cutting 2x10 SPF using DWV015 dust extractor (sold separately)***
- Dual-fitting dust port standard airlock™ port for seamless integration with DEWALT extractors, also compatible with standard 1-7/8 in. & 2-1/2 in. wet/dry vacuums with included adapter. (extractors and wet/dry vacuums sold separately)
- Optimized capacity cuts 6-1/2 in. baseboard vertically, 6-1/2 in. crown molding nested & 12-3/16 in. wide lumber
- Proven accuracy - cutline™ blade positioning system provides adjustment-free cut line indication
- Convenient portability optimized design weighs only 50.9 lb (bare tool) for easy transport
- Bevel-gear transmission delivers fast, reliable cutting and is designed to reduce the power losses that may occur with belt-drive designs
- Ease of use: easy blade change and cut depth, miter and bevel cut adjustment
Applications
- Interior / Exterior Finish & Trim
- Hardwood Flooring
- Dimensional Lumber Framing
- Deck Building
Includes
- (1) DCS781 60V MAX* Brushless cordless 12 in. double bevel sliding miter saw
- (1) DCB609 20V/60V MAX* FLEXVOLT® Battery
- (1) DCB1106 6A Charger
- (1) Blade
- (1) Blade wrench
- (1) Material clamp
- (1) Stabilizer bar
- (1) Vacuum adapter
- (1) Dust bag
- (2) Base extensions
Specifications
|
Battery Capacity
|
9 Ah
|
|
Battery Chemistry
|
Lithium Ion
|
|
Battery Type
|
Lithium Ion
|
|
Battery Voltage
|
60 V
|
|
Bevel Capacity
|
49°
|
|
Blade Diameter
|
12 in
|
|
Blade Speed
|
3800 rpm
|
|
Color
|
Black
|
|
Cutting Capacity
|
12.1875 in
|
|
Disc Diameter
|
12 in
|
|
Dust Extraction
|
Yes
|
|
Led light
|
Yes
|
|
Max. Depth of Cut
|
6.5 in
|
|
No Load Speed (m/min)
|
3800 RPM
|
|
No Load Speed (RPM)
|
3800
|
|
Number of Pieces
|
11
|
|
Power Source
|
Cordless
|
|
Product Height
|
17.72 in
|
|
Product Length
|
30.51 in
|
|
Product Weight
|
50.9 lbs
|
|
Product Width
|
19.49 in
|
|
Speed
|
3800 rpm
|
|
Tool Length
|
30.51 in
|
|
Voltage
|
60 V
|
Support
Warranty
- 3 Year Limited Warranty, 1 Year Free Service, 90 Days Satisfaction Guaranteed
We’re confident of the quality of our products, and we’ll repair, without charge, any defects due to faulty materials or workmanship within the specified warranty.
Service
We take extensive measures to ensure all our products are made to the very highest standards and meet all relevant industry regulations.
Support Manual
Disclaimer(s)
- * Maximum initial battery voltage (measured without a workload) is 60 volts. Nominal voltage is 54.
- **Using a DeWalt FLEXVOLT® DCB609 battery.
- ***When Cutting 2x10 SPF using DCB609 battery and DWV015 Dust Extractor (sold separately).
