1/2 in Drive Metric Sockets 12 pt

DirectTorque™ Technology
Polished chrome vanadium finish
Knurled control ring

See More Details

Product Details

Downloads

Product Overview

These Hand Sockets have DirectTorque™ technology to help prevent rounding of fasteners and to provide better grip. The chrome finish helps provide protection against chipping and flaking.

Additional Features

Hard stamped markings

Warranty Information

Unfortunately, the warranty information cannot be retrieved for this specific product. Please review the information about our warranties.

Learn More

Service

We take extensive measures to ensure all our products are made to the very highest standards and meet all relevant industry regulations.

Learn More

Product nameFind the right size	SKU	Nut End Outside Diameter [in]	Drive End Outside Diameter [in]	Nut Depth [in]	Bolt Clearance Depth [in]	Overall Length [in]
DWMT 1/2 in Drive 12 pt Socket 29 mm	DWMT19276	1-1/2	1-1/2	13/16	31/32	1-11/16
1/2 in Drive 12 pt Socket 36 mm	DWMT19277	1-31/32	1-31/32	1-5/16	1-17/32	2-1/4

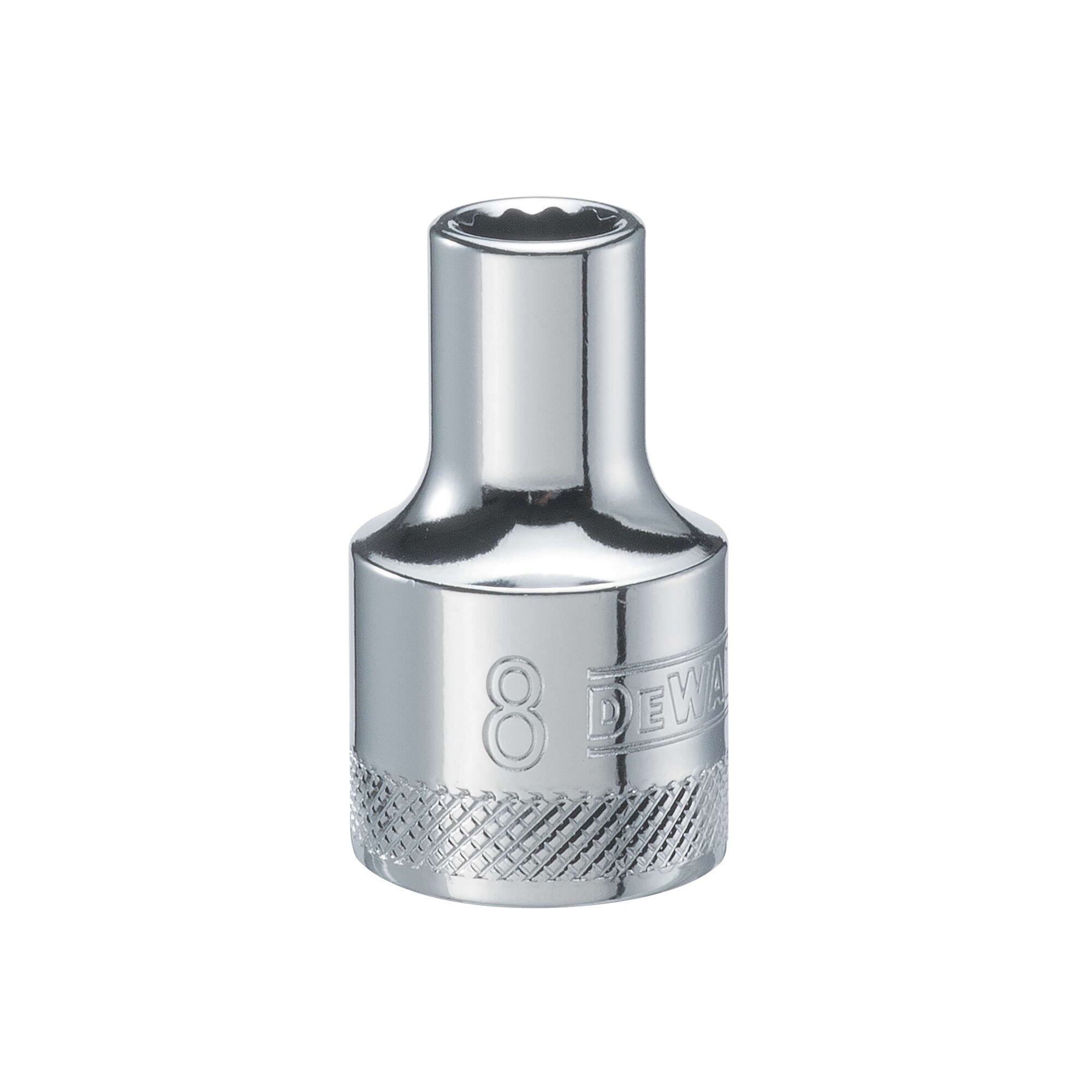

1/2 in Drive 12 pt Socket 8 mm	DWMT19278	1/2	27/32	11/32	7/8	1-1/2
1/2 in Drive 12 pt Socket 9 mm	DWMT19279	9/16	27/32	13/32	7/8	1-1/2
1/2 in Drive 12 pt Socket (10 mm)	DWMT74561	5/8	27/32	13/32	7/8	1-1/2
1/2 in Drive 12 pt Socket 12 mm	DWMT74567	23/32	27/32	13/32	7/8	1-1/2
1/2 in Drive 12 pt Socket 13 mm	DWMT74568	3/4	27/32	13/32	7/8	1-1/2
1/2 in Drive 12 pt Socket 14 mm	DWMT74570	13/16	27/32	13/32	7/8	1-1/2
1/2 in Drive 12 pt Socket 15 mm	DWMT74571	13/16	27/32	9/16	7/8	1-1/2
1/2 in Drive 12 pt Socket 16 mm	DWMT74573	16	29/32	9/16	13/16	1-1/2
1/2 in Drive 12 pt Socket 17 mm	DWMT74574	15/16	15/16	9/16	13/16	1-1/2
1/2 in Drive 12 pt Socket 18 mm	DWMT74575	31/32	31/32	9/16	13/16	1-1/2
1/2 in Drive 12 pt Socket 19 mm	DWMT74576	1-1/32	1-1/32	23/32	13/16	1-1/2
1/2 in Drive 12 pt Socket 20 mm	DWMT74577	1-1/16	1-1/16	23/32	13/16	1-1/2
1/2 in Drive 12 pt Socket 21 mm	DWMT74578	1-3/32	1-3/32	23/32	13/16	1-1/2
1/2 in Drive 12 pt Socket 22 mm	DWMT74579	1-3/16	1-3/16	23/32	29/32	1-9/16
1/2 in Drive 12 pt Socket 23 mm	DWMT74580	1-7/32	1-7/32	25/32	29/32	1-9/16
1/2 in Drive 12 pt Socket 24 mm	DWMT74581	1-1/4	1-1/4	25/32	29/32	1-9/16
1/2 in Drive 12 pt Socket 25 mm	DWMT74582	1-9/32	1-9/32	25/32	29/32	1-9/16
1/2 in Drive 12 pt Socket 26 mm	DWMT74583	1-11/32	1-11/32	13/16	31/32	1-11/16
1/2 in Drive 12 pt Socket 27 mm	DWMT74584	1-13/32	1-13/32	13/16	31/32	1-11/16
1/2 in Drive 12 pt Socket 28 mm	DWMT74585	1-15/32	1-15/32	13/16	31/32	1-11/16
1/2 in Drive 12 pt Socket 30 mm	DWMT74588	1-9/16	1-9/16	13/16	31/32	1-11/16
1/2 in Drive 12 pt Socket 32 mm	DWMT74589	1-21/32	1-21/32	7/8	1-3/32	1-25/32
