DCLE34030GB

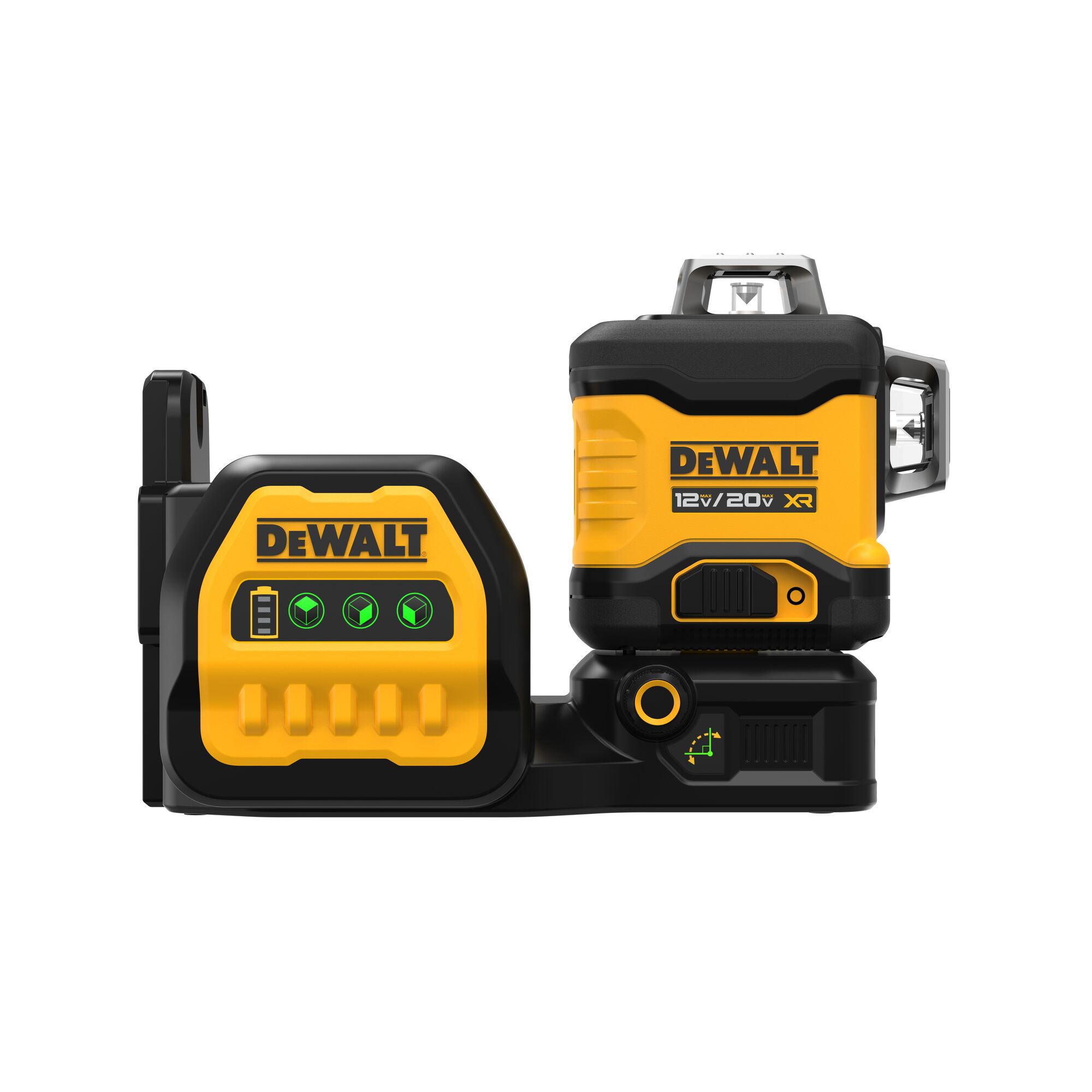

20V MAX* XR® 3 X 360 Green Line Laser (Tool Only)
DCLE34030GB

20V MAX* XR® 3 X 360 Green Line Laser (Tool Only)

  • PRECISE POSITIONING: Fine adjustment knob
  • EXTENDED RUNTIME: 10 hours of runtime*** on single 20V MAX* 2.0Ah battery and longer runtime with larger capacity batteries
  • Integrated magnetic pivoting base with 1/4" - 20, 5/8" - 11 thread for use with tripod (DW0737 sold separately)
View more features
This 230 ft./330 ft. 3x360 laser is the go-to jobsite laser. Now offered on the 20V MAX* battery platform, this laser will seamlessly integrate with the tools you already have on the job. This long-reaching laser has a range of up to 330 ft.**** when used with a detector (sold separately). Achieve precise positioning with a fine-adjust knob and supreme accuracy with 1/8 in. at 30 ft. Use for a full work day with a 10 hour runtime *** when using a 20V MAX* 2.0Ah battery (sold separately). The kit includes the 3x360 Green Laser, target card, drop ceiling attachment, a TSTAK® compatible storage case and a user manual.

Additional Features

  • DEBRIS AND WATER RESISTANT: IP54 rating****
  • JOBSITE DURABILITY: Overmolded case and IP54 rating for dust and splash protection (Applies to tool, not battery or charger)
  • BACKED BY WARRANTY: 3 Year Limited Warranty, 1 Year Free Service and 90 Day Money Back Guarantee
  • 230 ft. visible distance and 330 ft. max**** detector range

Applications

  • Framing
  • Drywall
  • MEP
  • Builder
  • Remodeler

Includes

  • (1) DCMW220P2 2X20V MAX* 20 in DEWALT Mower
  • (1) Target Card
  • (1) TSTAK® Compatible Case

Specifications

Product Length
18 1/9 in
Laser Accuracy
+/-3mm@10m
IP Rating
IP54
Product Height
6 in
Product Width
12.99 in
Line Diagram
3 x 360°
Laser Beam Color
Green Beam
Is it a Set
Yes
Product Weight
8.16 lbs

Support

3 Year Limited Warranty, 1 Year Free Service, 90 Days Satisfaction Guaranteed

We’re confident of the quality of our products, and we’ll repair, without charge, any defects due to faulty materials or workmanship within the specified warranty.

Learn More

Service

We take extensive measures to ensure all our products are made to the very highest standards and meet all relevant industry regulations.

Support Manual

* Maximum initial battery voltage (measured without a workload) is 20 volts. Nominal voltage is 18., ** With detector (DW0892G), sold separately, *** 10 hours of runtime on average, using DEWALT 20V MAX* 2.0Ah battery (sold separately) with all 3 laser lines in use, **** 230 ft (70m) visible range, 330 ft (100m) maximum range on average when used with DW0982G detector (sold separately).
