DWHT83140

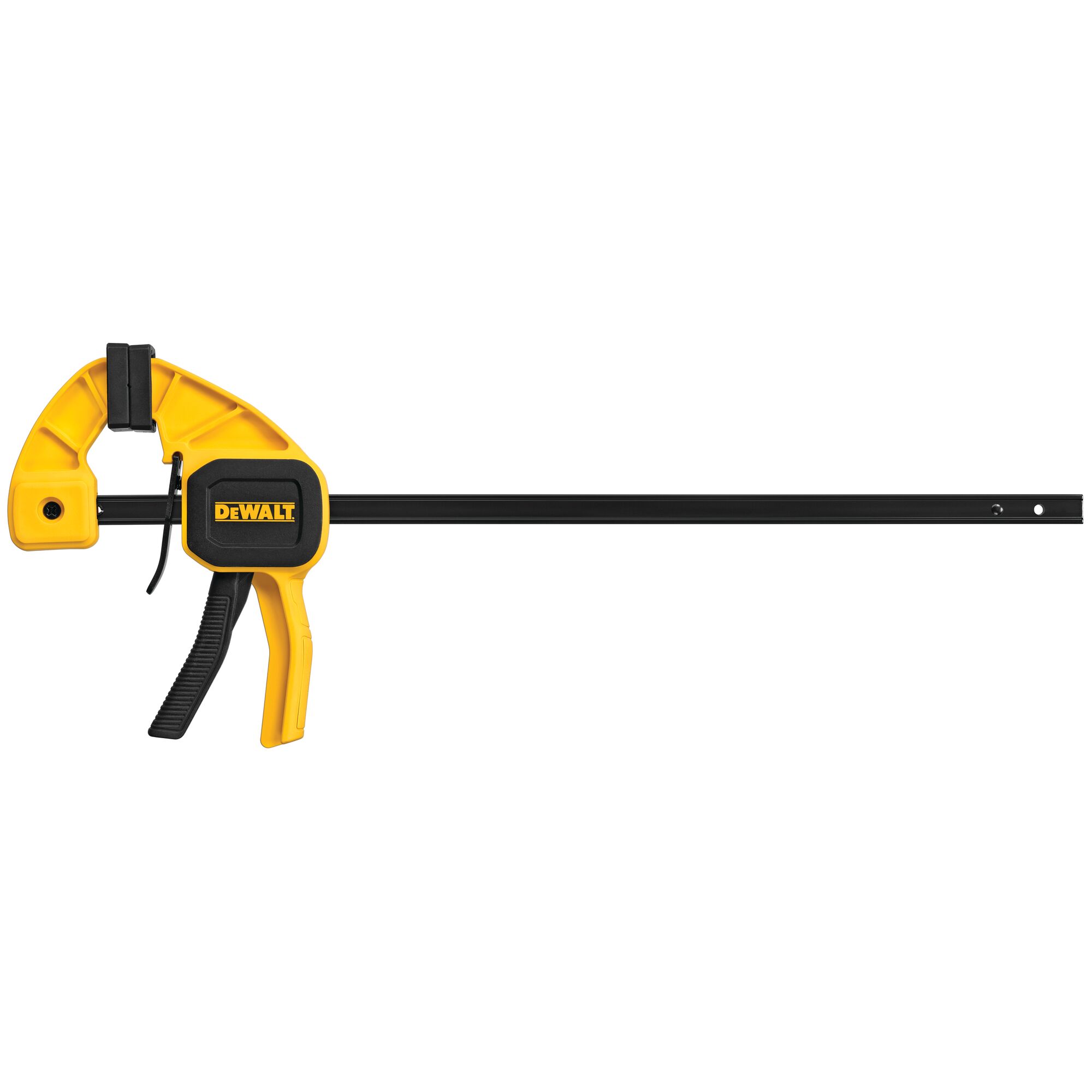

12 in. (300 mm) Medium Trigger Clamp

Product Overview

The 12-inch medium bar clamp is versatile and easy to use. Its reinforced nylon body and heat-treated steel bar are strong and durable. With 100-pounds of clamping force, 2-7/16" throat depth, and removable jaw pads to help reduce marring, this clamp was built to exceed the expectations of professional contractors.

Additional Features

  • One-handed operation for ease of use
  • Quick change button allows for easy conversion to a spreader
  • Removable jaw pads helps reduce marring

Applications

  • General Contractors
  • Cabinet Makers
  • Cabinet Installers
  • Carpenters

Includes

  • (1) Clamp

Specifications

Average Clamping Force
60 Kg
Bar Length
300 mm
Bar Material
Black Oxide Carbon Steel I-Beam
Bar Thickness
4 mm
Body Material
Plastic
Clamping Capacity
310 mm
Clamping Force
60 Kg
Clamping Force
100 lbs
Clamps and Vices Product Type
Trigger Clamp / One Handed Bar Clamp
Handle Material
Plastic
Handle Type
Trigger
Jaw Depth
35 mm
Jaw Max Opening
310 mm
Jaw Pad Type
Fix
Jaw Pads Material
Non-Marring
Jaw Width
25 mm
Maximum Clamping Force
60 Kg
Number of Pieces
1
Packaging
Hang Tag
Pad Dimensions l x w x h
35mm x 25mm x 9mm
Product Dimensions w/o Packaging l x w x h
455mm x175mm x30mm
Product Dimensions with Packaging l x w x h
455mm x175mm x30mm
Product Height
30 mm
Product Length
455 mm
Product Material
Steel
Product Weight
0.4 Kg
Product Width
175 mm
Quick Release Mechanism
Yes
Safety Stop
Yes
Spreading Capacity
450 mm
Spreading Function
Yes
Sustained Clamping Force
60 Kg
Throat Depth
2-7/16 in
Throat Depth
60 mm

Support

Warranty

  • 1 Year Limited Warranty

We’re confident of the quality of our products, and we’ll repair, without charge, any defects due to faulty materials or workmanship within the specified warranty.
