DWHT83194

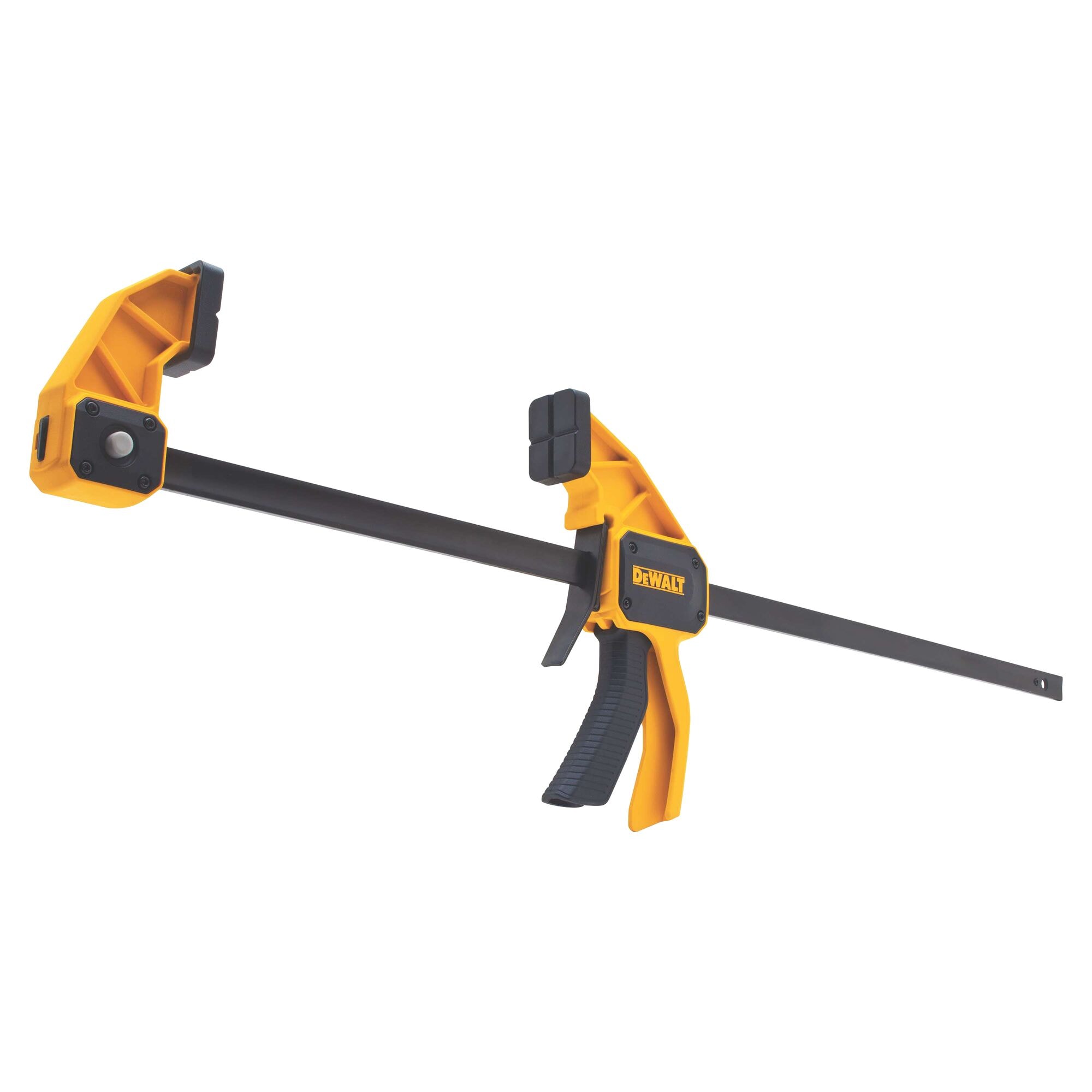

24 in. (600 mm) Large Trigger Clamp

Product Details

Downloads
    The 24-inch large bar clamp is versatile and easy to use. Its reinforced nylon body and heat-treated steel bar are strong and durable. With 300-pounds of clamping force, 3-1/4" throat depth, quick change button for easy conversion to a spreader and removable jaw pads to help reduce marring, this clamp was build to exceed the expectations of professional contractors.
    • General Contractors
    • Cabinet Makers
    • Cabinet Installers
    • Carpenters
    Average Clamping Force [Kg]
    135
    Bar Length [mm]
    790
    Bar Material
    Black Oxide Carbon Steel I-Beam
    Bar Thickness [mm]
    5
    Body Material
    Plastic
    Clamping Capacity [mm]
    620
    Clamping Force [Kg]
    135
    Clamping Force [lbs]
    300
    Clamps and Vices Product Type
    Trigger Clamp / One Handed Bar Clamp
    Handle Material
    Plastic
    Has Quick Release Mechanism?
    Yes
    Has Safety Stop?
    Yes
    Jaw Depth [mm]
    50
    Jaw Pads Material
    Non-Marring
    Jaw Pad Type
    Fix
    Jaw Width [mm]
    40
    Max. Clamping Force [Kg]
    135
    Max. Jaw Opening [mm]
    625
    Packaging
    Hang Tag
    Pad Dimensions l x w x h [in]
    50mm x40mm x9mm
    Product Dimensions w/o Packaging l x w x h [in]
    795mm x270mm x45mm
    Product Height [mm]
    45
    Product Length [mm]
    795
    Product Weight [g]
    800
    Product Weight [Kg]
    0.8
    Product Width [mm]
    270
    Spreading Capacity [mm]
    790
    Spreading Function
    Yes
    Sustained Clamping Force [Kg]
    135
    Throat Depth [in]
    3-1/4
    Throat Depth [mm]
    80
    • One-handed operation for ease of use
    • Quick change button allows for easy conversion to a spreader
    • Removable jaw pads help reduce marring
    • (1) Clamp
    • 1 Year Limited Warranty

    We’re confident of the quality of our products, and we’ll repair, without charge, any defects due to faulty materials or workmanship within the specified warranty.
