DWS780

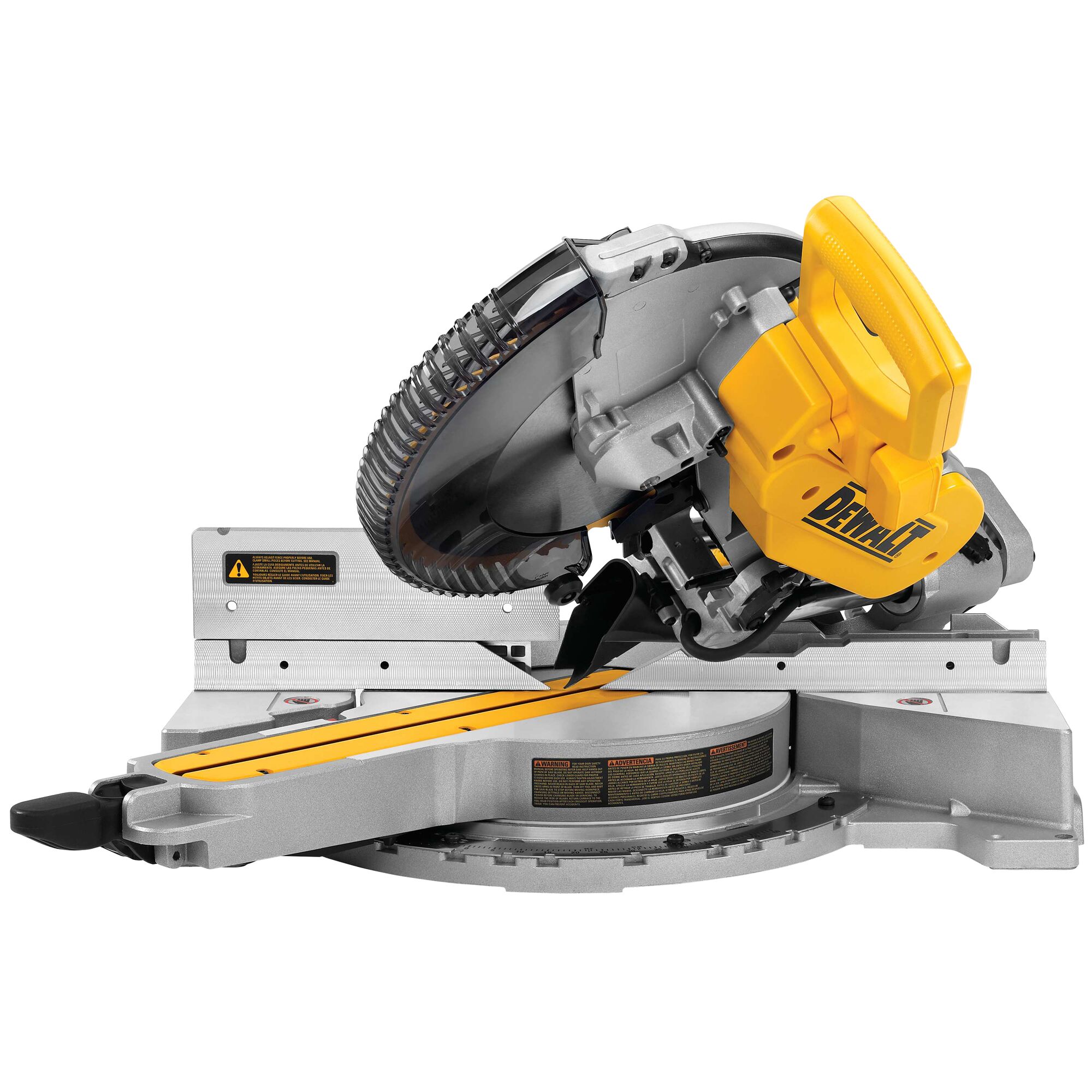

12 in. Double-Bevel Sliding Compound Miter Saw

Product Overview

Take a tough miter saw applications with this \n12 in. Double-Bevel Sliding Compound Miter Saw. a 15 Amp motor and integrated XPS crosscut positioning system for adjustment-free, accurate cut line indication, this tool is designed with a durable stainless-steel miter detent plate with cam lock.

Additional Features

  • Powerful 15 Amp, 3,800 rpm motor delivers extended power and durability
  • Super-efficient dust collection system captures over 75% of dust generated
  • Tall sliding fences support crown molding up to 7-1/2 in. nested and base molding up to 6-3/4 in. vertically against the fence while easily sliding out of the way for bevel cuts
  • Fence design allows cuts up to 2x14 dimensional lumber at 90° and 2x10 at 45°
  • Adjustable stainless-steel miter detent plate with 10 positive stops improves productivity and ensures cutting accuracy
  • Miters 60° to the right and 50° to the left providing increased capacity
  • Oversized bevel scale makes bevel angle adjustments accurate and easy
  • Compact, lightweight design (58 lbs.) allows for easy transport and storage
  • Cam lock miter handle with detent override deliver quick and accurate miter angles
  • Dual horizontal steel rails with innovative clamping mechanism and linear ball bearings deliver an accurate, durable and compact saw
  • Innovative gearbox and belt-drive design increases vertical cutting capacity

Applications

  • Steel pipe cutting, cutting aerated concrete blocks,etc. Cutting pallets with nails inside, plunge cutting for opening doors. Cutting pipes and metal sections, cutting cable trays, house building (floor and roof support), Window reconstruction
  • Cutting crown molding vertically nested against fence
  • Cutting base molding vertically against fence
  • Cutting 2x material and precision cuts for woodworking

Includes

  • (1) Blade Wrench
  • (1) Dust Bag
  • (1) Vertical Material Clamp
  • (1) 12 in. Carbide Blade
  • (1) 12 in. Miter Saw

Specifications

Accessories Included
Yes
Bevel Capacity
49°/49°
Blade Bore
30 mm
Blade Bore
1.18 in
Blade Diameter
12 in
Blade Diameter
305 mm
Blade Speed
3800 rpm
Color
Silver, Yellow
Cutter/Saw Wheel Diameter
305 mm
Cutter/Saw Wheel Diameter
12 in
Cutting Capacity
14 in
Depth
470 mm
Depth
32.33 in
Disc Diameter
12 in
Disc Diameter
305 mm
Dust Extraction
Yes
Led light
No
Max. Cutting Capacity (45°/45°)
2x10 in
Max. Cutting Capacity (45°/45°)
211 x 63 mm
Max. Cutting Capacity (45°/90°)
211 x 112 mm
Max. Cutting Capacity (45°/90°)
4x10 in
Max. Cutting Capacity (90°/45°)
268 x 63 mm
Max. Cutting Capacity (90°/90°)
303 x 110 mm
Max. Cutting Capacity (90°/90°)
2x14 in
Max. Depth of Cut
170 mm
Max. Depth of Cut
6.69 in
No Load Speed (RPM)
3800
Number of Pieces
5
Packaging
Carton
Possible Mitre Angles
50°/60°
Power Input
1675 W
Power Output
960 W
Power Source
Corded
Product Height
19.5 in
Product Height
396 mm
Product Length
770 mm
Product Length
32.33 in
Product Weight
25.5 Kg
Product Weight
56 lbs
Product Width
23 in
Saw Blade Thickness
2.6 mm
Saw Blade Thickness
0.1 in
Supplied in Storage Case Indicator
No
Uncertainty K1 (Vibration)
1.5 m/s2
Weight (Including Battery)
56 lbs
View in 3D DEWALT Logo

VIEW IN AR

Use your mobile device to see the 12 in. Double Bevel Sliding Compound Miter Saw in your space.*

*Requires a smart device running iOS 11 and later or Android 8.0 and later.

Support

Warranty

  • 3 Year Limited Warranty, 1 Year Free Service, 90 Days Satisfaction Guaranteed

We’re confident of the quality of our products, and we’ll repair, without charge, any defects due to faulty materials or workmanship within the specified warranty.
