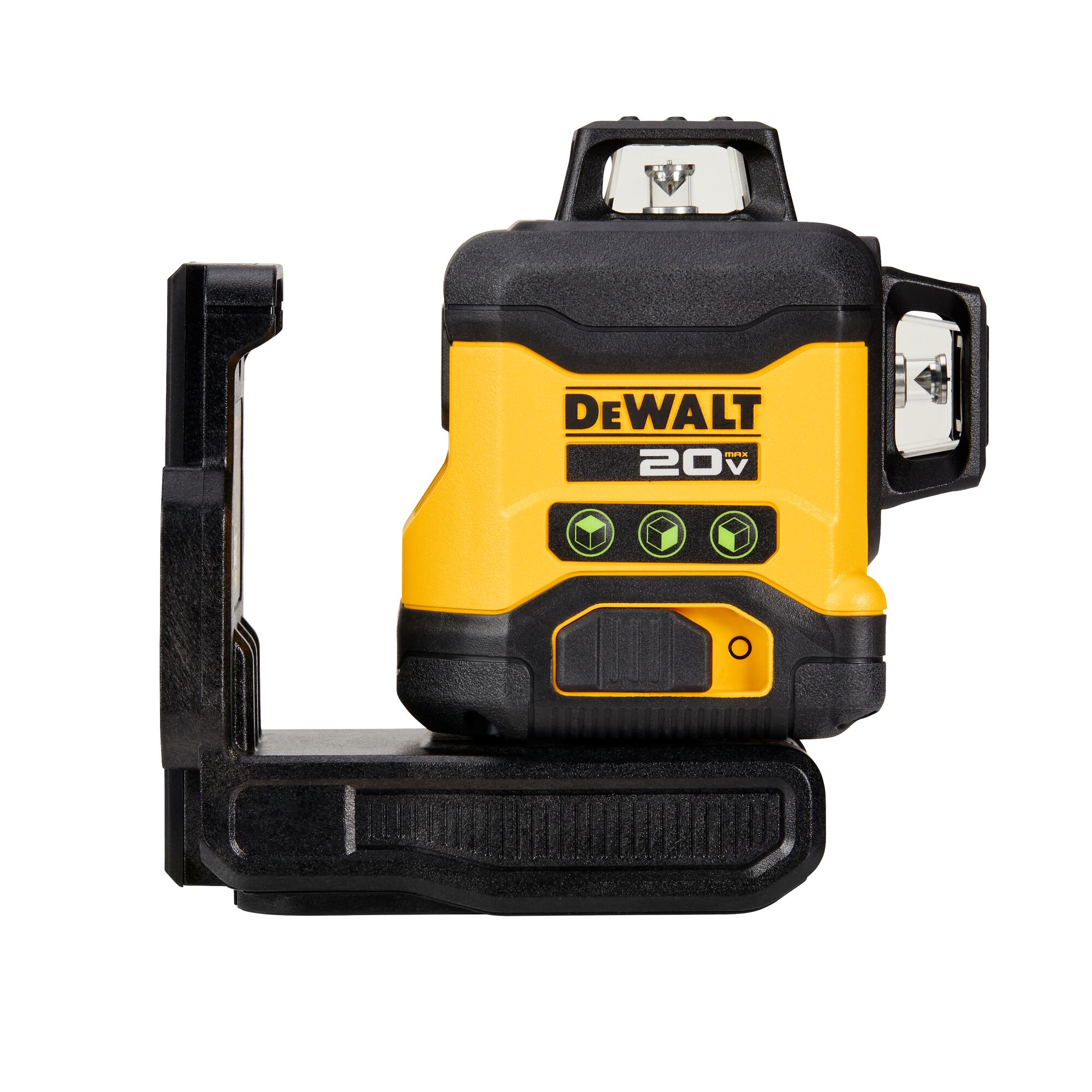

20V 3x360 Line Laser (Tool Only)
DCLE34031B
20V 3x360 Line Laser (Tool Only)
- With 1 Green Vertical Line and 2 Green Horizontal Lines
- Pendulum lock to prevent damage to internal components
- 130’ Visibility 330’ Max Detector Distance
DCLE34031B
20V 3x360 Line Laser (Tool Only)
- With 1 Green Vertical Line and 2 Green Horizontal Lines
- Pendulum lock to prevent damage to internal components
- 130’ Visibility 330’ Max Detector Distance
Product Details
Downloads
Tackle a variety of applications including steel stud and corner bead applications with the ATOMIC™ 20V MAX* 3 X 360º Line Laser (battery and charger sold separately). Ideal for tight spaces, this ATOMIC™ laser provides 11 hours of runtime per charge**, a compact design, and ±1/8 in accuracy. at 30 ft. Featuring a magnetic mount and locking pendulum, this laser offers performance and portability for a variety of jobsites. Take on large areas with 130 ft. (40 m) visible range and up to 330 ft. (100 m) maximum range on average when used with detector (DW0892G sold separately). Packed in a durable storage case, this product includes a ceiling/wall bracket with tripod mount and a laser target card.
|
Battery Run Time [Hrs]
|
11
|
|
Battery Source
|
Rechargeable Li-Ion
|
|
Battery Voltage [V]
|
20
|
|
Color
|
Yellow
|
|
IP Rating
|
IP54
|
|
Is Battery Included?
|
No
|
|
Is it a Set?
|
No
|
|
Laser Accuracy
|
± 1/8 in. @ 30 ft.
|
|
Laser Beam Color
|
Green Beam
|
|
Laser Beam Projection
|
3 x 360°
|
|
Leveling Type
|
Self-leveling
|
|
Line Diagram
|
3 x 360°
|
|
Materials Housing
|
Plastic
|
|
Number of Batteries Included
|
0
|
|
Number of Beams
|
3
|
|
Number Of Pieces
|
6
|
- 20V Max Platform - from family of over 300 tools
- Accurate at 1/8 In @ 30 Ft
- 3x360° self-levelling lines
- 11 hours of operation w/ 2Ah battery - Not Included
- Drop Protection and Water Resistance (IP54)
- With 1 Green Vertical Line and 2 Greens Horizontal Line
- Last mode memory for quick start up
- (1) Trade versatile bracket
- (1) Target card
- (1) User manual
- (1) Carrying case
- (1) Laser
- 1 Year Limited Warranty
We’re confident of the quality of our products, and we’ll repair, without charge, any defects due to faulty materials or workmanship within the specified warranty.
We take extensive measures to ensure all our products are made to the very highest standards and meet all relevant industry regulations.
Disclaimer(s)
- *Maximum initial battery voltage (measured without a workload) is 20 volts. Nominal voltage is 18.
- **on average, using DEWALT 20 MAX* DCB203 battery (sold separately) with all laser lines in use.
