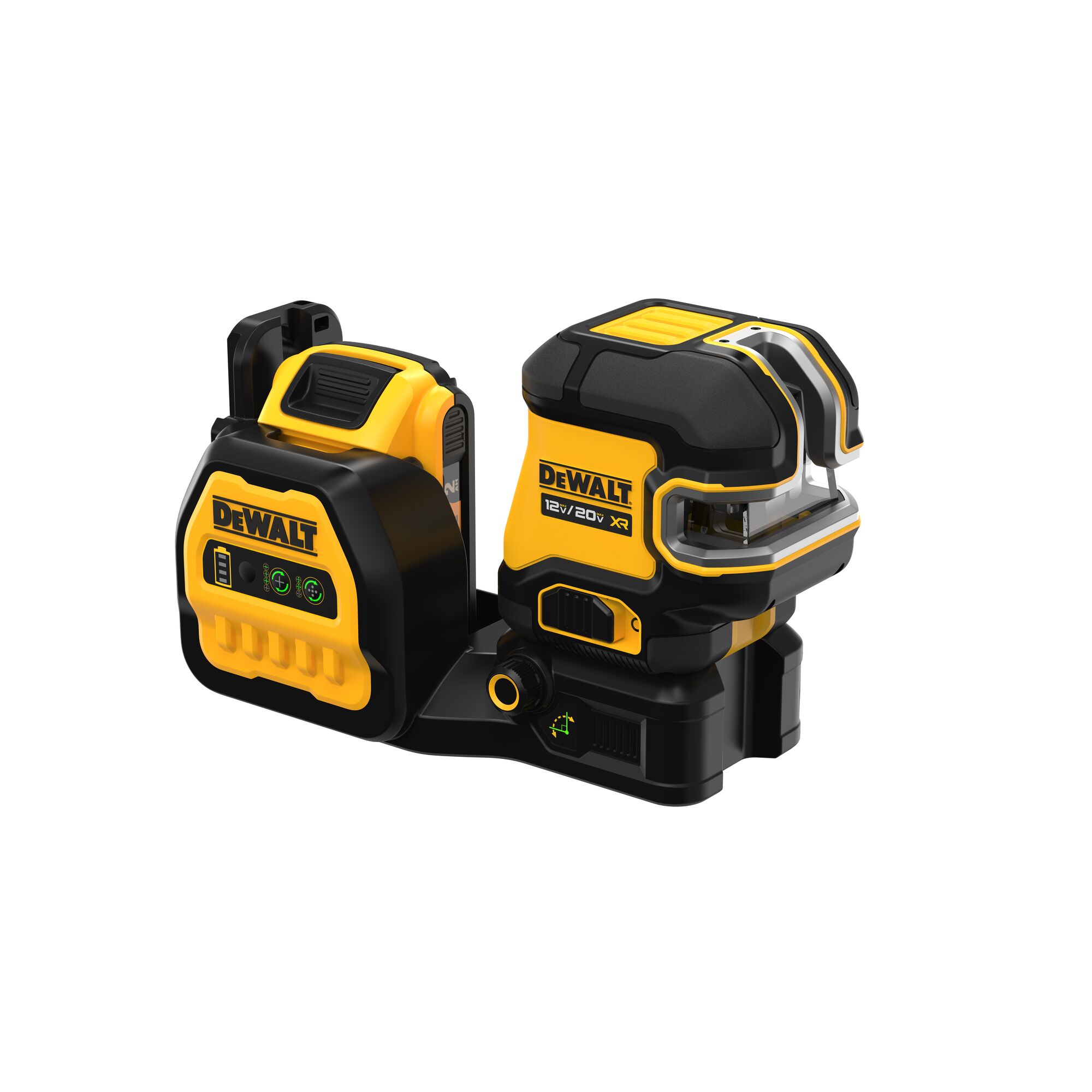

20V MAX* Cordless 5-Spot Green Line Laser (Tool Only)

Product Overview

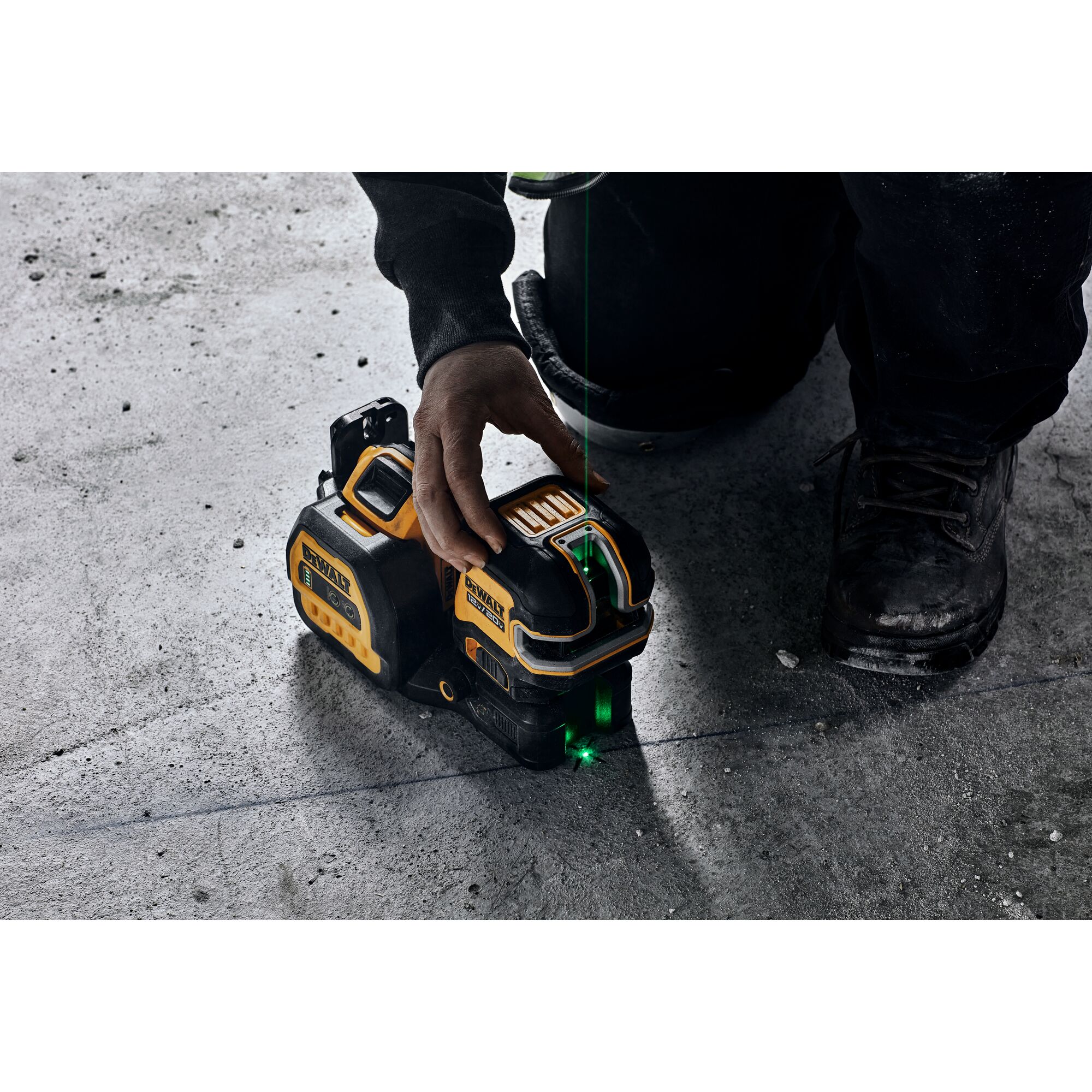

Tackle professional-level projects with the 20V MAX* XR® 5 Spot Green Line Laser that easily integrates with the tools you already have. Now offered as a part of the 20V MAX* cordless platform, this laser delivers reliable performance without the inconvenience of power cords, featuring a sturdy magnetic mount, flexible rotating head, fine adjust knob for control, and locking pendulum for enhanced usability. Use for two full work days with a 24 hour runtime*** when using the included 20V MAX* 2.0 Ah battery (sold separately). This kit includes the 5-Spot Green Line Laser, ceiling/wall bracket, and laser target in a DEWALT TSTAK® case.

Additional Features

  • 12V MAX** compatible: Using 12V MAX** batteries
  • Precise positioning: Fine adjustment knob
  • Line control: Individual laser line and laser spot on/off providing control of lines/spots and extending run times when possible
  • Jobsite durability: Powerful magnetic mount supports system with up to 8Ah sized batteries
  • Extended runtime: 24 hours of run time on single 20V MAX* 2Ah battery and longer run times with larger capacity batteries


  • Framing
  • Drywall
  • MEP
  • Builder
  • Remodeler
  • Landscaping


  • (5) Spot green line laser
  • (1) Drop ceiling bracket
  • (1) Target card
  • (1) TSTAK® Case


Battery Included
Battery Run Time Hrs.
Battery Source
Rechargeable Li-Ion
IP Rating
Is it a Set
Laser Accuracy
± 3mm @ 10 m
Laser Beam Color
Green Beam
Laser Beam Projection
Spot Laser
Leveling Type
Line Diagram
5 Spots
Materials Housing
Number of Batteries Included
Number of Beams
Number of Pieces
Product Height
7.05 in
Product Height
17.9 cm
Product Length
44.3 cm
Product Length
17.444 in
Product Weight
8.27 lbs
Product Width
13.94 in
Product Width
35.4 cm



  • 3 Year Limited Warranty, 1 Year Free Service, 90 Days Satisfaction Guaranteed

We’re confident of the quality of our products, and we’ll repair, without charge, any defects due to faulty materials or workmanship within the specified warranty.

Learn More


We take extensive measures to ensure all our products are made to the very highest standards and meet all relevant industry regulations.

Support Manual


  • * Maximum initial battery voltage (measured without a workload) is 20 volts. Nominal voltage is 18.
  • ** With detector (DW0892G), sold separately
  • *** 24 hours of runtime on average, using DEWALT 20V MAX* DCB203 2.0Ah battery with 2 laser lines in use (battery not included)
  • **** 230 ft (70m) visible range, 330 ft (100m) maximum range on average when used with DW0982G detector (sold separately).
