DWH205DH
DEWALT® Dust Extractor for DCH263 Rotary Hammer
Reviews
Product details

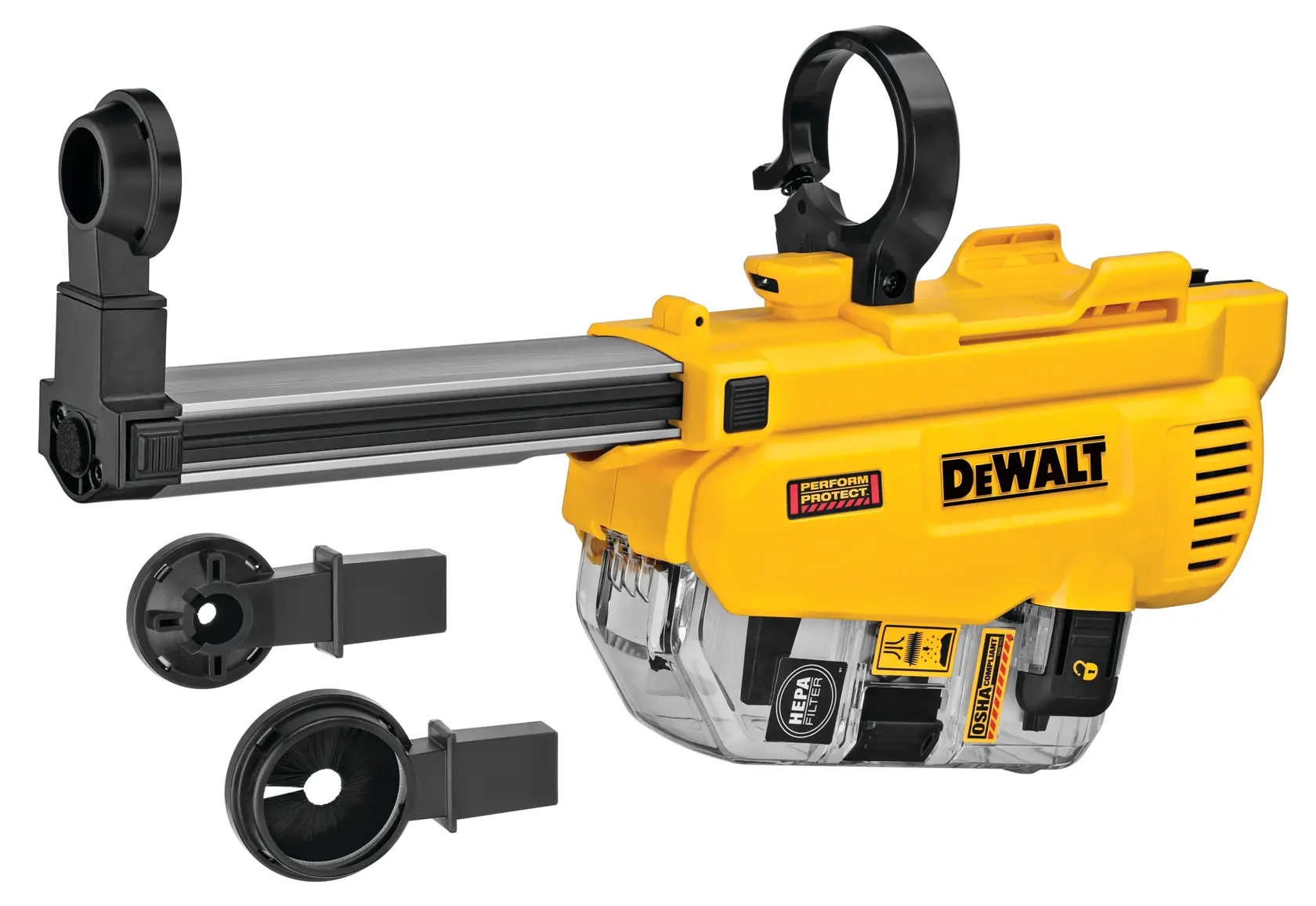

The DWH205DH is an OSHA Table 1 Compliant dust extractor for the DCH263 20V MAX* XR Brushless 1-1/8“ D-Handle SDS Plus Rotary Hammer. This dust extraction system features a powerful built in motor for increased suction and high-performance drilling. The 2-second power-off delay ensures that dust extraction continues after drill is switched off. The DWH205DH features three nozzle heads for maximum dust collection during the application. The included nozzles are tuned for up to 1“ diameter bits, all stop bits up to 1.5“ shoulder and small diameter bits up to 0.5“. This dust extractor allows for bit lengths up to 10“ in overall length for drilling applications. This allows users to install a wide range of anchors including pinch nails, rod hanging systems like drop-ins, large diameter sleeve, stud/wedge, and screw anchors. This unit includes an OSHA 1926.1153-compliant Dust Box Assembly. Equipped with a filter cleaning mechanism and a HEPA filter, it removes 99.97% of airborne particles 0.3 microns or greater.
- Coil nails with bright, galvanished (G12), hot-dipped or stainless steel surfaces finishes. Either spiral, ring, plain or barbed shank
- Three replaceable optimized dust nozzle heads are tuned for up to 1 “ diameter bits, all stop bits up to 1.5 in. shoulder and small diameter bits up to 0.5 in
- Bit lengths up to 10 in. in overall length
- Quick release for easy tool assembly and disassembly
- Compact inline design; Rotary hammer and dust collection only 3.72 in. wide installed
- Durable clear high capacity dust box with replaceable HEPA cannister that removes 99.97% of airborne particle 0.3 microns or greater
- Easily adjusted depth stop for accurate anchor hole depths
- Dust extractor mounted led for illuminating low light work environments
Product Type
Dust Extractor
Motor Type
Brushless
Product Material
Steel
Assembled Product Length
19.5-in
Assembled Product Weight
4.5-lbs
- (1) DWH302DH, Table 1 OSHA 1926.1153-Compliant Dust Box Assembly
- (1) Three Dust Nozzle Heads for Up to 1 in Diameter Bits, All Stop Bits Up to 1.5 in Shoulder and Small Diameter Bits Up to 1/2 in
- (1) DWH205DH, Dust Extractor for the DCH263 20V MAX* XR Brushless 1-1/8 in D-Handle SDS Plus Rotary Hammer
- 1 Year Limited Warranty, 3 Year Limited Warranty When Registered
We take extensive measures to ensure all our products are made to the very highest standards and meet all relevant industry regulations.
Customer SupportDownloads and manuals
N603504_DWH205.pdf
PDF
